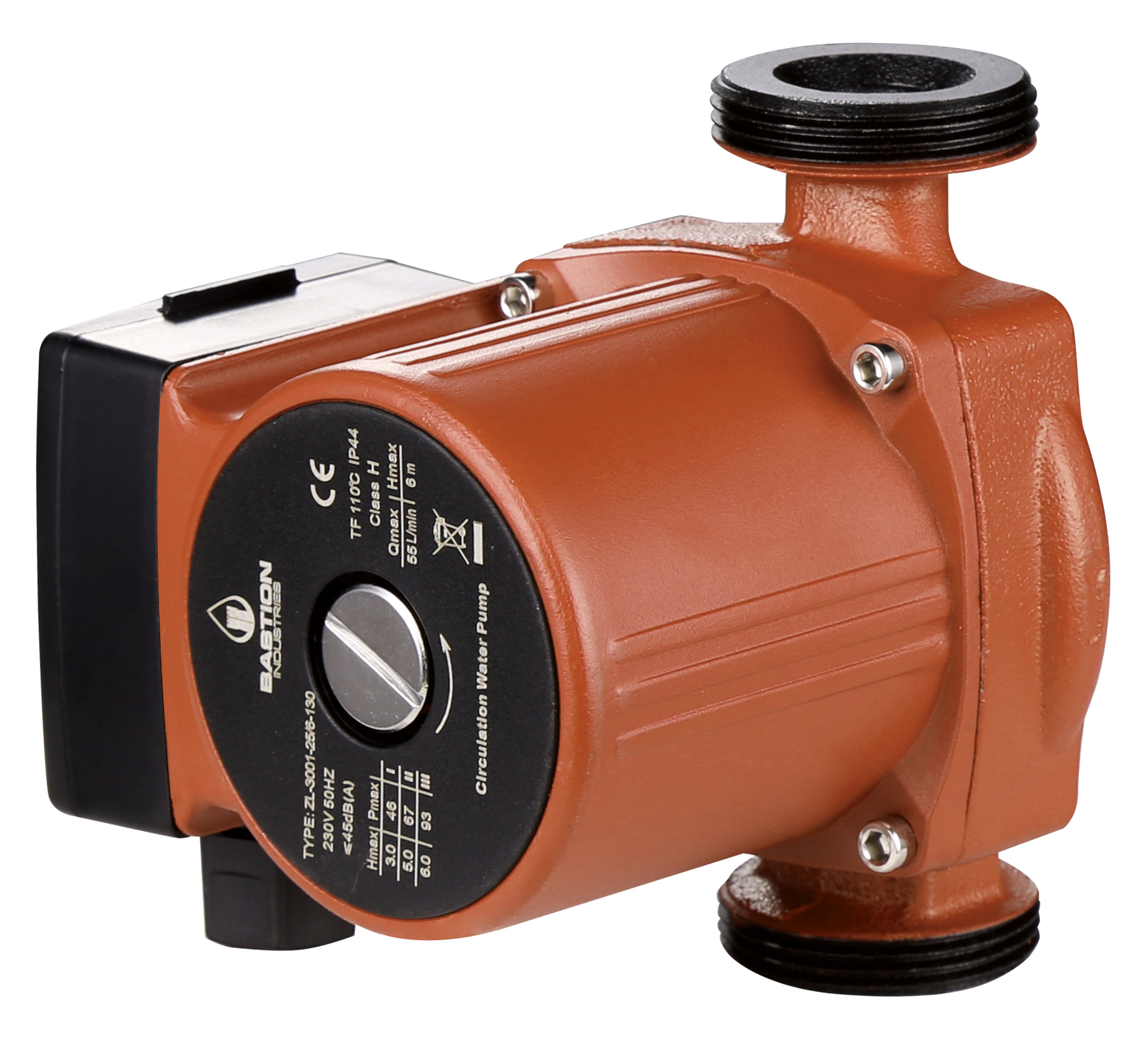

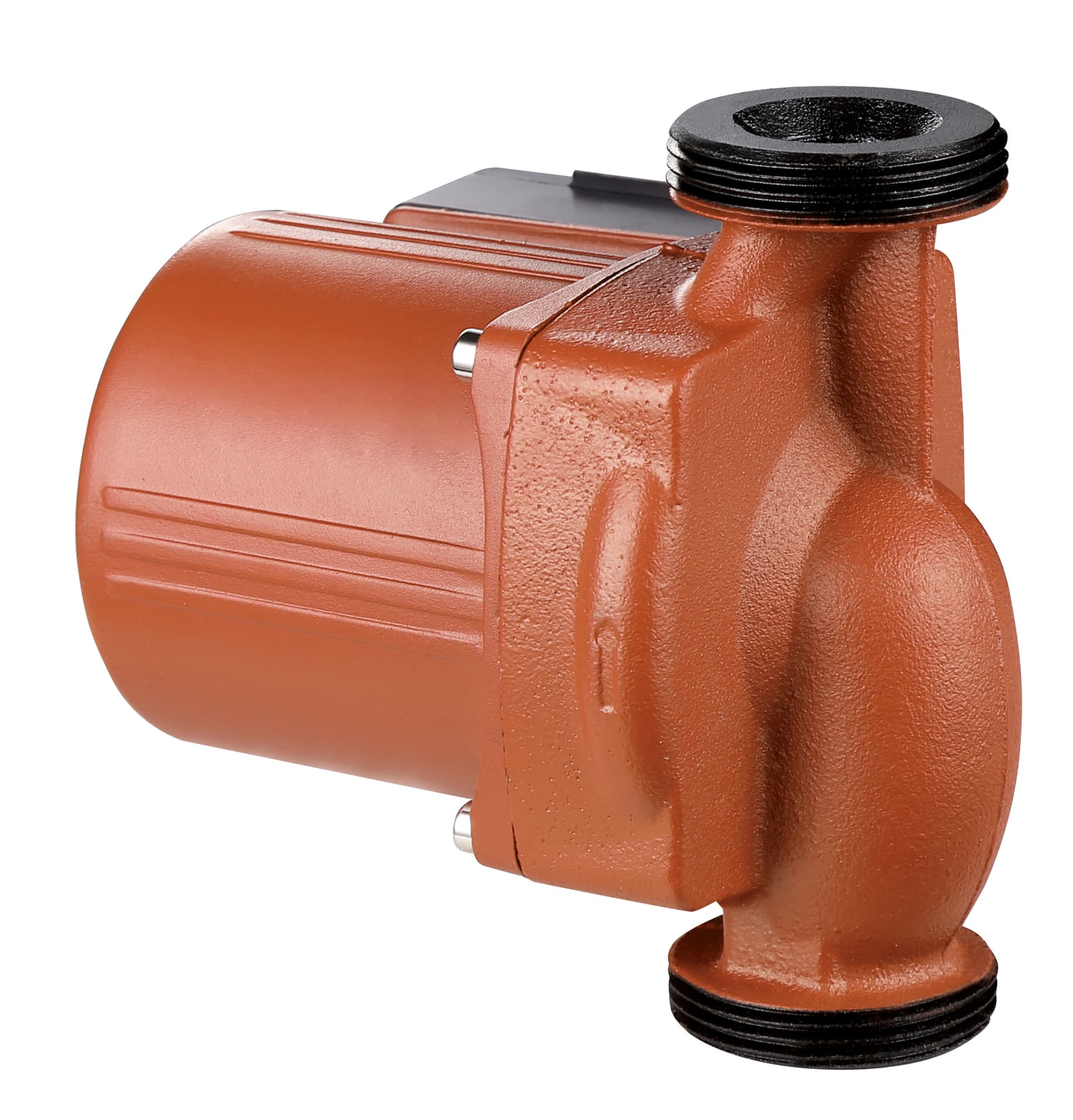

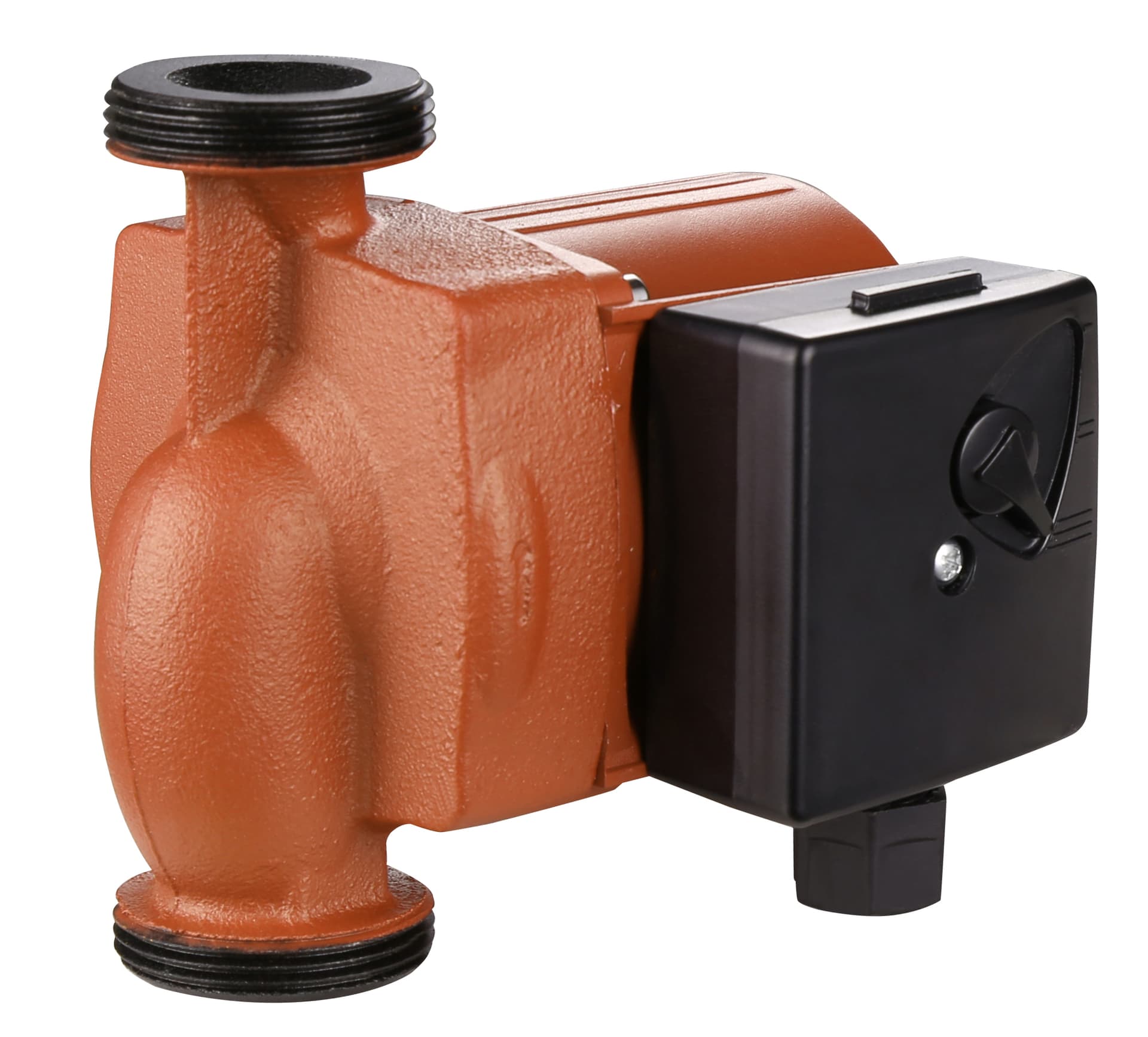

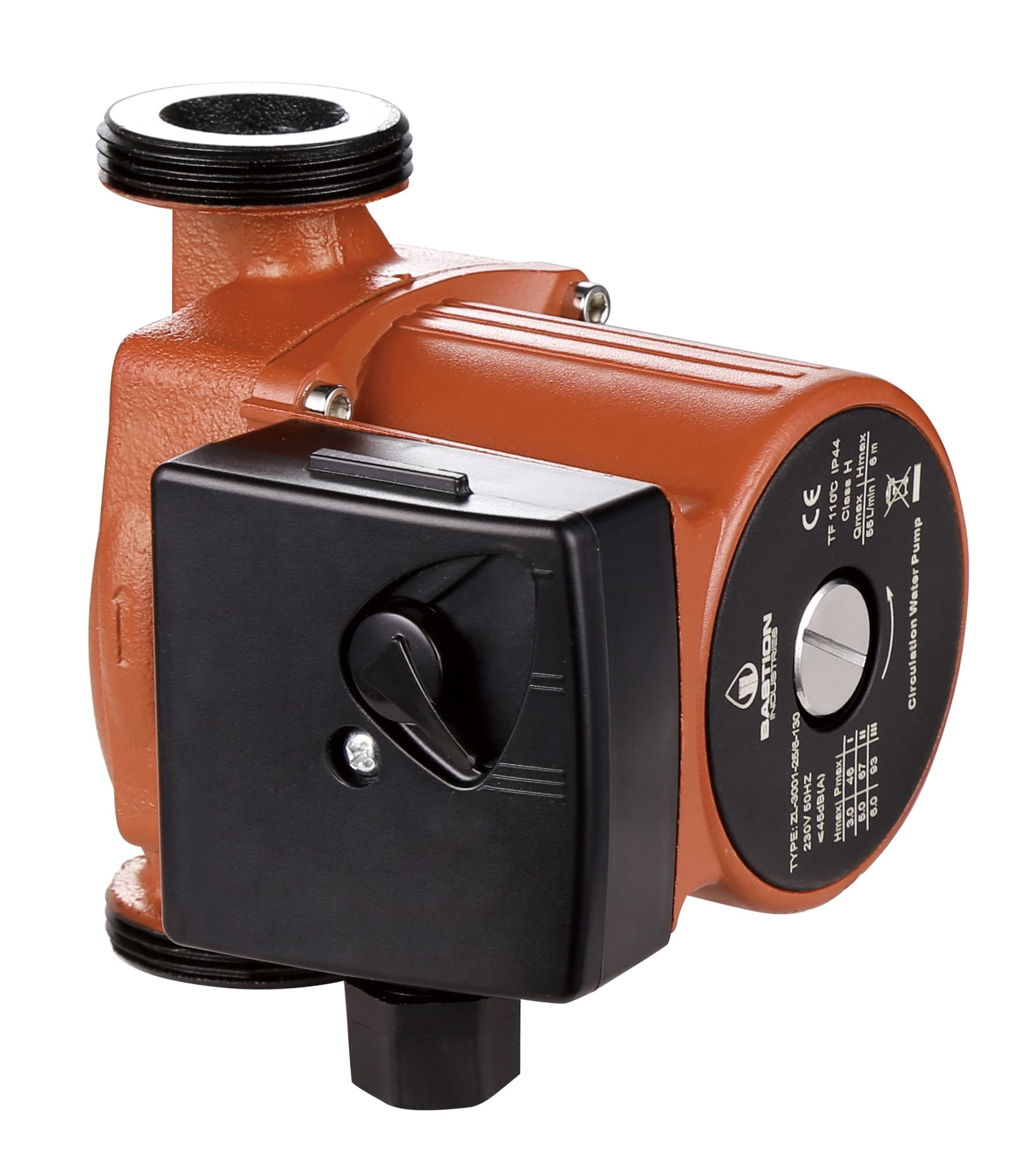

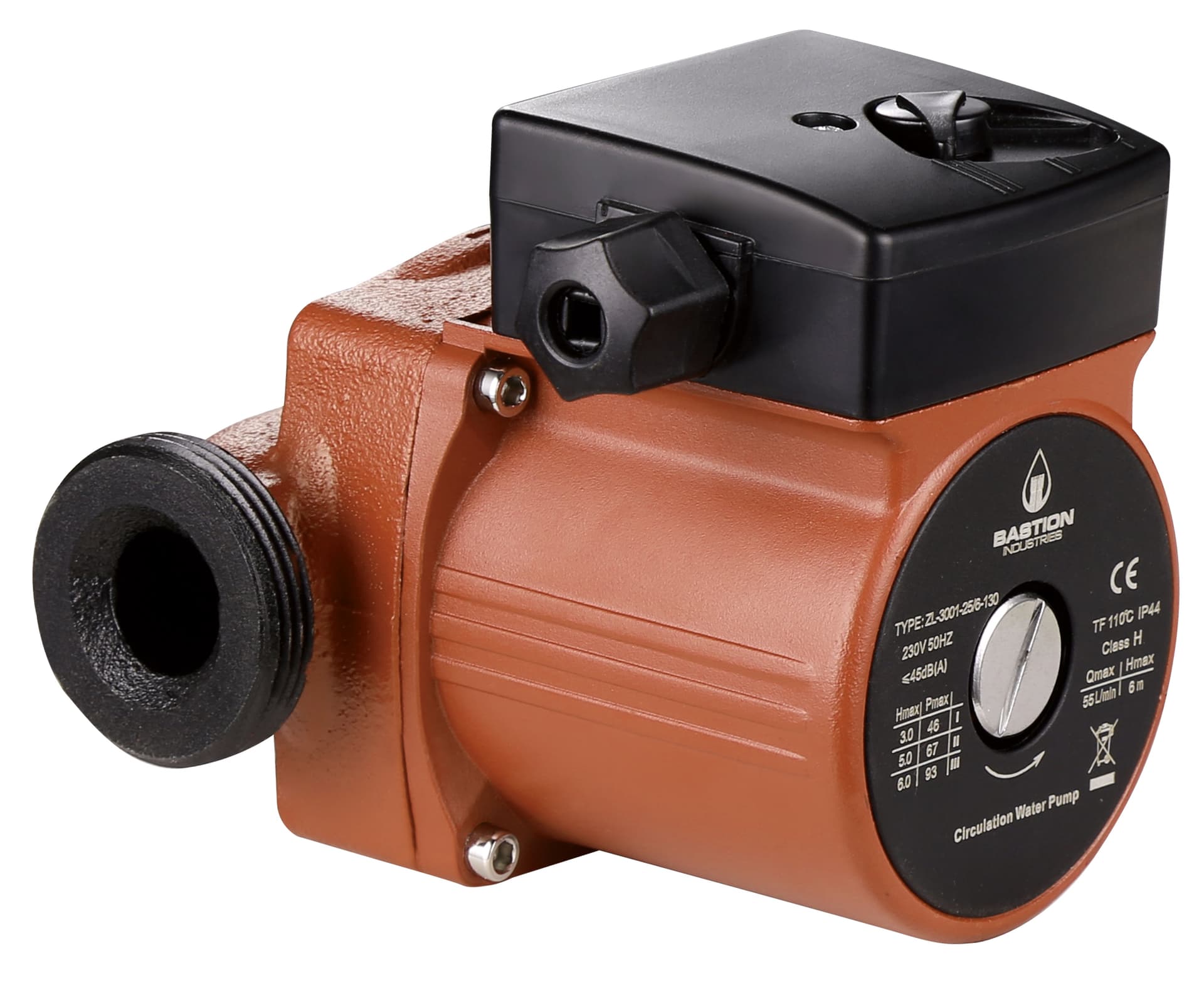

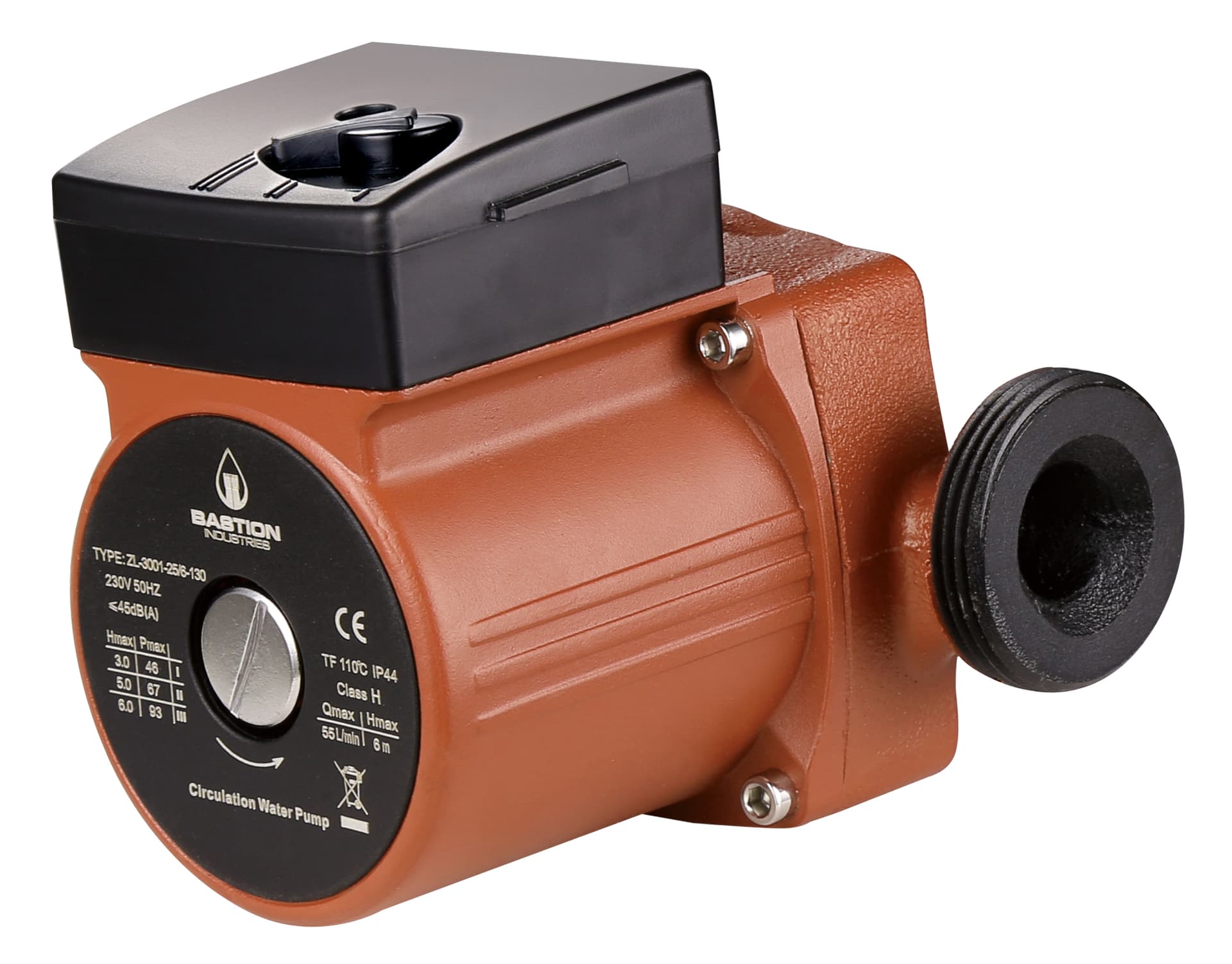

Bastion 25-6-130 Central Heating Circulating Pump
The Bastion 25-6-130 central heating circulating pump circulates heating water through compatible radiator and wet underfloor heating systems. It features three manual speed settings, a maximum 6m pump head, 130mm installation length and 1½" threaded connections. With a cast iron body and 230V, 50Hz supply, this heating circulator is suitable for compatible new installations and pump replacement work. Select the operating speed to suit the heating circuit's requirements.
Bastion Central Heating Circulating Pump | MEP Stock
Bastion 25-6-130 Central Heating Circulating Pump
The Bastion 25-6-130 central heating circulating pump circulates heating water through compatible radiator and wet underfloor heating systems. It features three manual speed settings, a maximum 6m pump head, 130mm installation length and 1½" threaded connections. With a cast iron body and 230V, 50Hz supply, this heating circulator is suitable for compatible new installations and pump replacement work. Select the operating speed to suit the heating circuit's requirements.
Product Options
Bastion Central Heating & Underfloor Heating Circulating Pump
Professional Product Information from MEP Stock
The Bastion 25-6-130 central heating circulating pump moves heating water around compatible domestic radiator and wet underfloor heating circuits. Its manual three-position speed selector allows installers to choose the operating speed required by the heating circuit.
With a 130mm port-to-port installation length, 1½" threaded connections and a maximum 6m pump head, this circulator is an option for compatible heating pump replacements and new installations. It operates on a 230V, 50Hz single-phase supply and combines a cast iron pump body with a PEI impeller and ceramic shaft and bearings.
Key Features
- Three manual speed settings to suit the heating circuit's circulation requirements
- Maximum pump head of 6m at the highest speed setting
- 130mm installation length for compatible pump replacements and new installations
- 1½" threaded inlet and outlet connections
- Cast iron pump body with ceramic shaft and bearings
- Suitable for compatible radiator and water underfloor heating circuits
- 230V, 50Hz single-phase motor with IP44 protection
Technical Specifications
Brand: Bastion Industries
Model: ZL-3001-25/6-130
Product Type: Manual three speed heating circulation pump
Power Supply: 230V, 50Hz, single phase
Installation Length: 130mm, port to port
Connections: 1½" threaded inlet and outlet
Maximum Pump Head: 6m
Maximum Working Pressure: 10 bar
Construction: Cast iron body, PEI impeller, ceramic shaft and bearings
Motor Protection: IP44; insulation class H
Suitable Fluids: Heating water and water/glycol mixtures up to a 1:1 mixing ratio, as specified in the manufacturer datasheet
| Speed | Max. Head | Power (W) |
|---|---|---|
| I | 3m | 46 |
| II | 5m | 67 |
| III | 6m | 93 |
Speed and power figures follow the pump label. Head values are maximums; actual flow and head depend on the heating circuit's resistance.
Applications
- Compatible domestic central heating and radiator circuits
- Water underfloor heating manifold and pump assemblies where the pump specification matches
- Replacement of existing heating circulators with matching dimensions and duty requirements
- New heating installations, refurbishment and maintenance
Bastion Central Heating & Underfloor Heating Circulating Pump
Professional Product Information from MEP Stock
The Bastion 25-6-130 central heating circulating pump moves heating water around compatible domestic radiator and wet underfloor heating circuits. Its manual three-position speed selector allows installers to choose the operating speed required by the heating circuit.
With a 130mm port-to-port installation length, 1½" threaded connections and a maximum 6m pump head, this circulator is an option for compatible heating pump replacements and new installations. It operates on a 230V, 50Hz single-phase supply and combines a cast iron pump body with a PEI impeller and ceramic shaft and bearings.
Key Features
- Three manual speed settings to suit the heating circuit's circulation requirements
- Maximum pump head of 6m at the highest speed setting
- 130mm installation length for compatible pump replacements and new installations
- 1½" threaded inlet and outlet connections
- Cast iron pump body with ceramic shaft and bearings
- Suitable for compatible radiator and water underfloor heating circuits
- 230V, 50Hz single-phase motor with IP44 protection
Technical Specifications
Brand: Bastion Industries
Model: ZL-3001-25/6-130
Product Type: Manual three speed heating circulation pump
Power Supply: 230V, 50Hz, single phase
Installation Length: 130mm, port to port
Connections: 1½" threaded inlet and outlet
Maximum Pump Head: 6m
Maximum Working Pressure: 10 bar
Construction: Cast iron body, PEI impeller, ceramic shaft and bearings
Motor Protection: IP44; insulation class H
Suitable Fluids: Heating water and water/glycol mixtures up to a 1:1 mixing ratio, as specified in the manufacturer datasheet
| Speed | Max. Head | Power (W) |
|---|---|---|
| I | 3m | 46 |
| II | 5m | 67 |
| III | 6m | 93 |
Speed and power figures follow the pump label. Head values are maximums; actual flow and head depend on the heating circuit's resistance.
Applications
- Compatible domestic central heating and radiator circuits
- Water underfloor heating manifold and pump assemblies where the pump specification matches
- Replacement of existing heating circulators with matching dimensions and duty requirements
- New heating installations, refurbishment and maintenance
