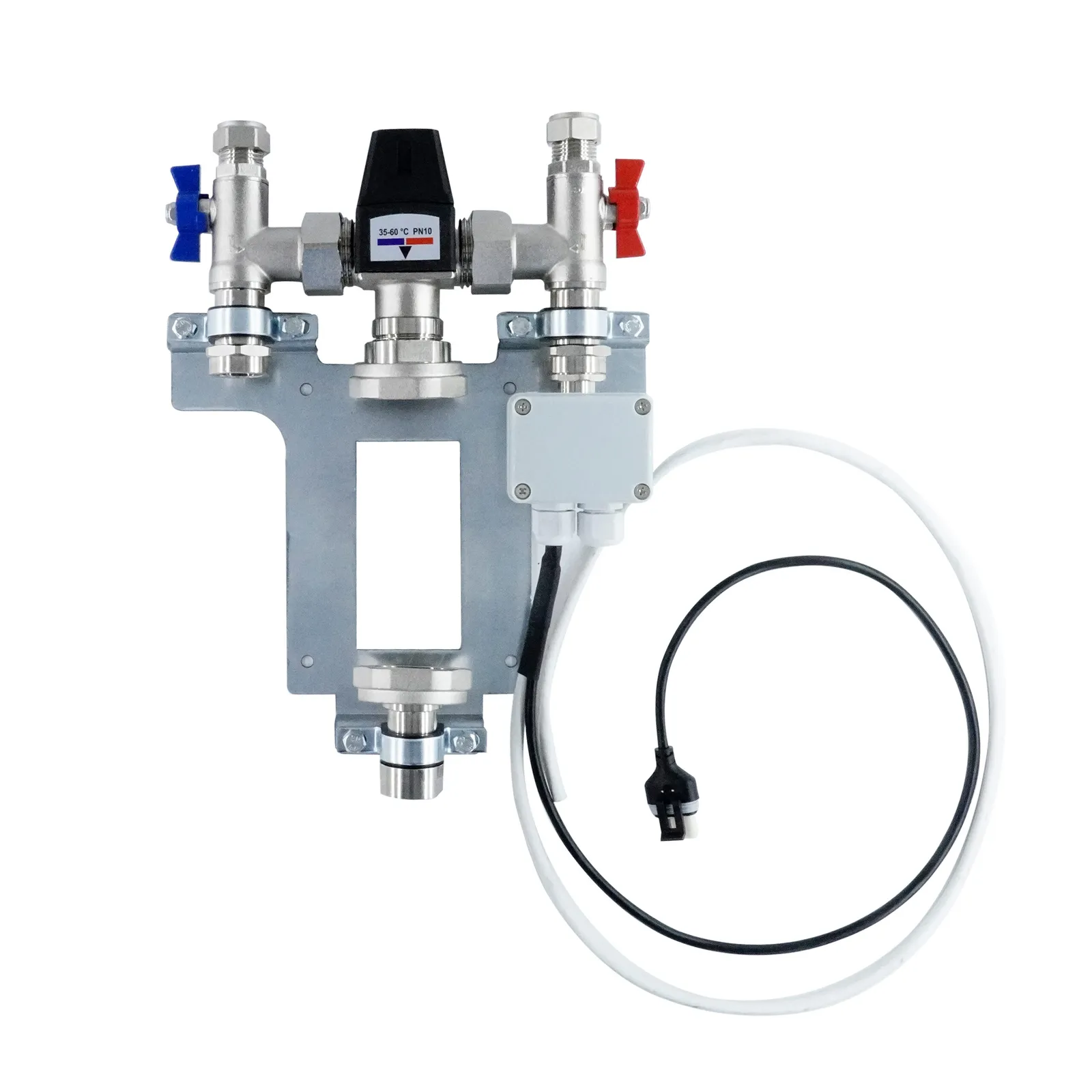

ES Water Underfloor Heating Single Room Pump Pack System
The ES Water Underfloor Heating Single Room Pump Pack System is a professional heating circulation component designed to support circulation and control within a compatible water-based heating system. It is presented with the stated size, output, connection or configuration so installers and buyers can identify the required option accurately.
ES Water Underfloor Heating Single Room Pump Pack System
The ES Water Underfloor Heating Single Room Pump Pack System is a professional heating circulation component designed to support circulation and control within a compatible water-based heating system. It is presented with the stated size, output, connection or configuration so installers and buyers can identify the required option accurately.
Quick Trade Summary: ES Water Underfloor Heating Single Room Pump Pack System
The ES Water Underfloor Heating Single Room Pump Pack System (ZL-2532B) provides precision temperature control and dedicated hydraulic circulation for single-zone underfloor heating applications up to 40m². Engineered with a nickel-plated brass mixing manifold, fail-safe thermostatic element, and high-efficiency A-rated pump, it fits neatly inside standard kitchen base units or boiler cupboard recesses.
Trade Engineering Standards & Hydraulic Application
In hydronic underfloor heating installations, matching the circulation pump's head and volumetric flow rate to circuit pressure drop is essential to prevent cold spots, actuator noise, and premature component wear. The ES Water Underfloor Heating Single Room Pump Pack System is precision-engineered to British Standard BS EN 1264 and CIBSE hydronic sizing standards, guaranteeing balanced loop flow across modern UK domestic and commercial heating systems.
Engineering Specifications & Technical Standards
| Parameter | Specification Standard |
|---|---|
| Model Reference | ES ZL-2532B Single Zone Station |
| Maximum Coverage | Up to 40m² Floor Heating |
| Temperature Blending Range | 35°C to 65°C Continuously Variable |
| Circulator Specification | ErP A-Rated 6m Modulating Pump |
| Primary Connections | 15mm / 22mm Compression Joints |
| Secondary Connections | Standard 3/4" Euroconus Flat-Faced Ports |
| Max Static Pressure | 6 Bar Working Limit |
| Body Material | CW617N Nickel-Plated Forged Brass |
| Check Valve | Integrated Hydraulic Backflow Preventer |
| Electrical Specs | 230V AC, 50 Hz Single Phase |
| Standards | BS EN 1264, Part L Energy Compliance |
Step-by-Step Installation & Commissioning Protocol
- Hydraulic Isolation & Depressurisation: Close manifold isolation ball valves and isolate primary boiler feeds before loosening union nuts. Have a trade catchment tray ready for residual water.
- Gasket Seating & Mechanical Fit: Inspect flat union mating faces. Insert fresh 1½" EPDM sealing washers. Position pump body strictly with the motor shaft horizontal (never pointing vertically up or down) to ensure water-lubricated bearing longevity.
- Torque Alignment: Tighten 1½" BSP union nuts by hand, then secure with adjustable pump spanners to recommended torque (approximately 45–55 Nm). Do not overtighten or pinch the rubber gasket.
- Electrical Termination: Wire live, neutral, and earth into the manifold wiring centre or 230V room thermostat switched live output. Verify earth continuity in accordance with BS 7671 (IET Wiring Regulations 18th Edition).
- Venting & Air Purging: Fill the manifold circuits loop by loop until flowmeter sight glasses run crystal clear of trapped microbubbles. Power on pump and allow automatic air-venting routine to complete before locking final operational mode.
- Flow Balancing: Calibrate flowmeters on each manifold port according to CIBSE design calculation sheets (typically 1.5 to 2.5 Litres/min per loop depending on loop length).
Frequently Asked Questions: ES Water Underfloor Heating Single Room Pump Pack System
What is the difference between this ES model and standard pump packs?
The ES model features a compact, side-entry hydraulic configuration engineered specifically for tight cupboard and utility space installations where depth is limited.
What temperature should I set on the blending dial for screeded floors?
For standard sand-cement or anhydrite screed floors, set the blending valve between 38°C and 45°C. For timber joist or overlay systems, 45°C to 50°C is typically required.
Does this unit require a bypass valve?
If connecting directly to boiler primaries without an existing heating zone valve, an automatic bypass valve (ABV) on the primary circuit is recommended to protect boiler overrun.
Can I run two pipe loops from this single unit?
Yes, using a dual-port Euroconus manifold splitter tee, you can connect two independent loops covering up to 40m² total floor area.
How does the thermal safety cut-off function?
The thermostatic head utilizes a rapid-expansion liquid wax capsule that instantly restricts primary boiler water if temperatures exceed the set point, safeguarding delicate wooden or vinyl floors.
Is next-day UK delivery available for trade contractors?
Yes, all ES pump packs are held in stock at MEP Stock for immediate dispatch across mainland UK.
Order the ES Water Underfloor Heating Single Room Pump Pack System with Trade Delivery
Genuine heating and hydronic supplies in stock for immediate dispatch. Backed by full UK manufacturer warranty and dedicated technical support.
Quick Trade Summary: ES Water Underfloor Heating Single Room Pump Pack System
The ES Water Underfloor Heating Single Room Pump Pack System (ZL-2532B) provides precision temperature control and dedicated hydraulic circulation for single-zone underfloor heating applications up to 40m². Engineered with a nickel-plated brass mixing manifold, fail-safe thermostatic element, and high-efficiency A-rated pump, it fits neatly inside standard kitchen base units or boiler cupboard recesses.
Trade Engineering Standards & Hydraulic Application
In hydronic underfloor heating installations, matching the circulation pump's head and volumetric flow rate to circuit pressure drop is essential to prevent cold spots, actuator noise, and premature component wear. The ES Water Underfloor Heating Single Room Pump Pack System is precision-engineered to British Standard BS EN 1264 and CIBSE hydronic sizing standards, guaranteeing balanced loop flow across modern UK domestic and commercial heating systems.
Engineering Specifications & Technical Standards
| Parameter | Specification Standard |
|---|---|
| Model Reference | ES ZL-2532B Single Zone Station |
| Maximum Coverage | Up to 40m² Floor Heating |
| Temperature Blending Range | 35°C to 65°C Continuously Variable |
| Circulator Specification | ErP A-Rated 6m Modulating Pump |
| Primary Connections | 15mm / 22mm Compression Joints |
| Secondary Connections | Standard 3/4" Euroconus Flat-Faced Ports |
| Max Static Pressure | 6 Bar Working Limit |
| Body Material | CW617N Nickel-Plated Forged Brass |
| Check Valve | Integrated Hydraulic Backflow Preventer |
| Electrical Specs | 230V AC, 50 Hz Single Phase |
| Standards | BS EN 1264, Part L Energy Compliance |
Step-by-Step Installation & Commissioning Protocol
- Hydraulic Isolation & Depressurisation: Close manifold isolation ball valves and isolate primary boiler feeds before loosening union nuts. Have a trade catchment tray ready for residual water.
- Gasket Seating & Mechanical Fit: Inspect flat union mating faces. Insert fresh 1½" EPDM sealing washers. Position pump body strictly with the motor shaft horizontal (never pointing vertically up or down) to ensure water-lubricated bearing longevity.
- Torque Alignment: Tighten 1½" BSP union nuts by hand, then secure with adjustable pump spanners to recommended torque (approximately 45–55 Nm). Do not overtighten or pinch the rubber gasket.
- Electrical Termination: Wire live, neutral, and earth into the manifold wiring centre or 230V room thermostat switched live output. Verify earth continuity in accordance with BS 7671 (IET Wiring Regulations 18th Edition).
- Venting & Air Purging: Fill the manifold circuits loop by loop until flowmeter sight glasses run crystal clear of trapped microbubbles. Power on pump and allow automatic air-venting routine to complete before locking final operational mode.
- Flow Balancing: Calibrate flowmeters on each manifold port according to CIBSE design calculation sheets (typically 1.5 to 2.5 Litres/min per loop depending on loop length).
Frequently Asked Questions: ES Water Underfloor Heating Single Room Pump Pack System
What is the difference between this ES model and standard pump packs?
The ES model features a compact, side-entry hydraulic configuration engineered specifically for tight cupboard and utility space installations where depth is limited.
What temperature should I set on the blending dial for screeded floors?
For standard sand-cement or anhydrite screed floors, set the blending valve between 38°C and 45°C. For timber joist or overlay systems, 45°C to 50°C is typically required.
Does this unit require a bypass valve?
If connecting directly to boiler primaries without an existing heating zone valve, an automatic bypass valve (ABV) on the primary circuit is recommended to protect boiler overrun.
Can I run two pipe loops from this single unit?
Yes, using a dual-port Euroconus manifold splitter tee, you can connect two independent loops covering up to 40m² total floor area.
How does the thermal safety cut-off function?
The thermostatic head utilizes a rapid-expansion liquid wax capsule that instantly restricts primary boiler water if temperatures exceed the set point, safeguarding delicate wooden or vinyl floors.
Is next-day UK delivery available for trade contractors?
Yes, all ES pump packs are held in stock at MEP Stock for immediate dispatch across mainland UK.
Order the ES Water Underfloor Heating Single Room Pump Pack System with Trade Delivery
Genuine heating and hydronic supplies in stock for immediate dispatch. Backed by full UK manufacturer warranty and dedicated technical support.
