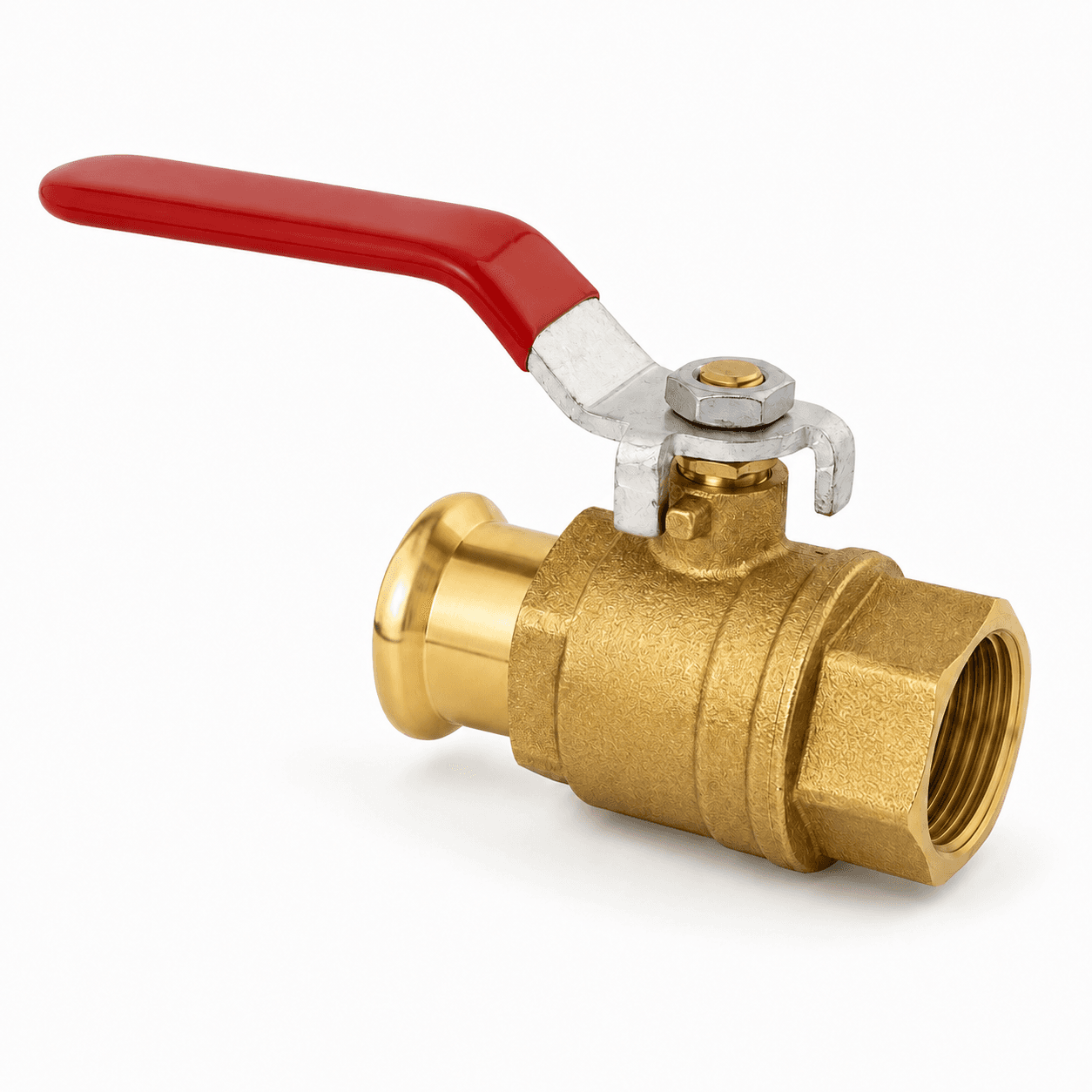

M Press Full Bore Lever Ball Valve – Press Fit x Female BSP

The M Press Full Bore Lever Ball Valve provides reliable isolation for hot and cold water pipework. Each valve combines one M Profile press fit connection with one female BSP threaded connection, providing a convenient transition between pressfit pipework and compatible threaded components.

Featuring a full bore design, the valve helps minimise flow restriction when fully open, supporting efficient water flow through the system. The fitted red lever handle provides simple quarter-turn operation for fast and convenient isolation.

Designed for professional plumbing and heating installations, the valve has a maximum working pressure of 25 bar and a maximum working temperature of 110°C.

Available Sizes

• 15mm
• 22mm
• 28mm
• 35mm

Key Features

• M Profile press fit ball valve
• Press Fit x Female BSP connection
• One press fit connection and one female threaded connection
• Full bore design for minimal flow restriction
• Red lever handle
• Quick quarter-turn operation
• Suitable for hot and cold water isolation
• Suitable for indoor plumbing installations
• Maximum working pressure: 25 bar
• Maximum working temperature: 110°C
• WRAS approved
• Durable construction for professional installations

Technical Specifications

• Product Type: Full Bore Lever Ball Valve
• Press Profile: M Profile
• Connection: Press Fit x Female BSP
• Available Sizes: 15mm, 22mm, 28mm, 35mm
• Handle: Red Lever
• Operation: Quarter Turn
• Bore: Full Bore
• Maximum Working Pressure: 25 bar
• Maximum Working Temperature: 110°C
• Application: Hot & Cold Water
• Approval: WRAS Approved

Applications

• Hot water systems
• Cold water systems
• Domestic plumbing
• Heating systems
• Commercial plumbing installations
• Pressfit water pipework
• Indoor water isolation
• Press fit to female BSP threaded connections

Installation: Ensure the correct valve size, BSP connection and compatible M Profile pressing equipment are used for the installation.
