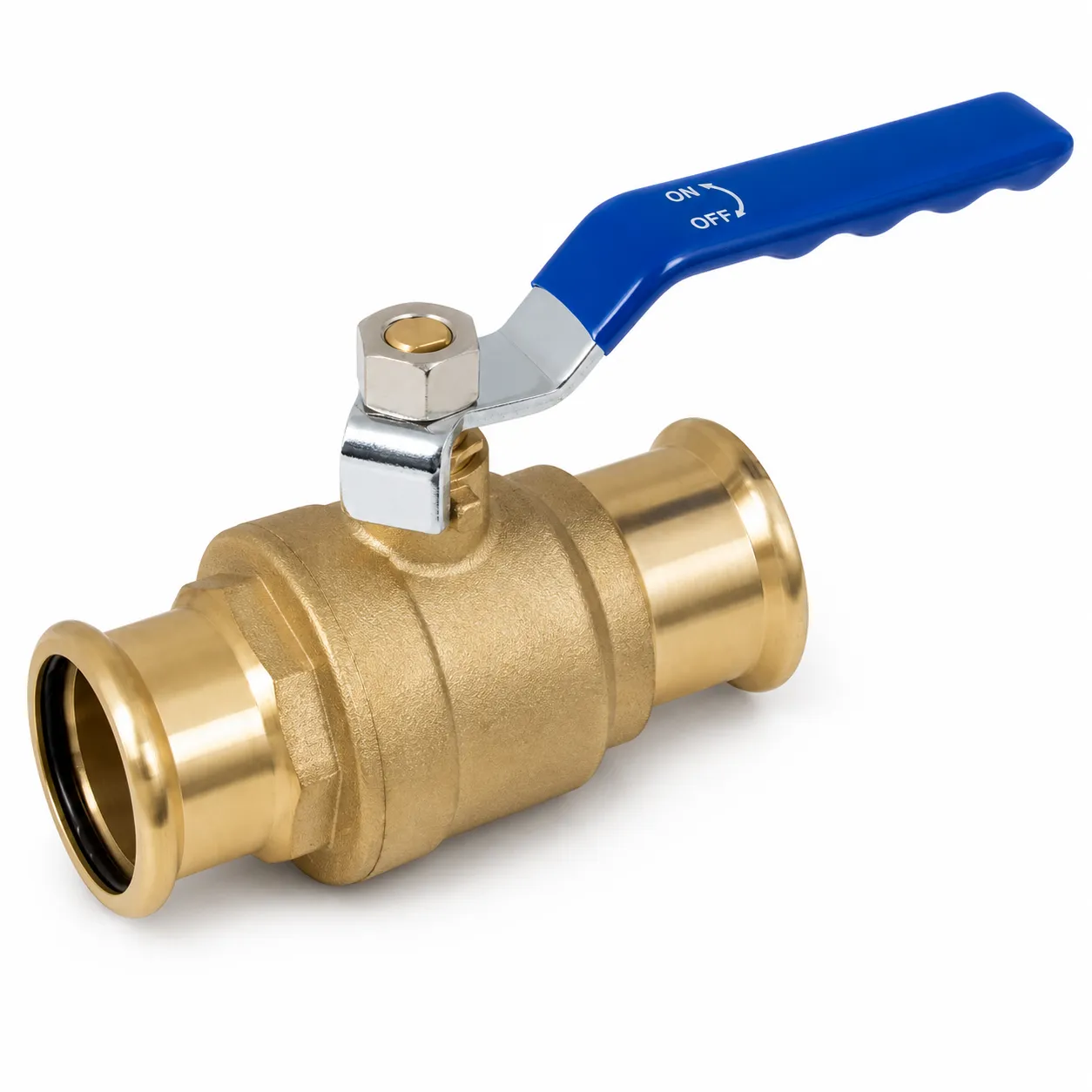

Copper M Profile Press Fit Water Lever Ball Valve - Blue Handle

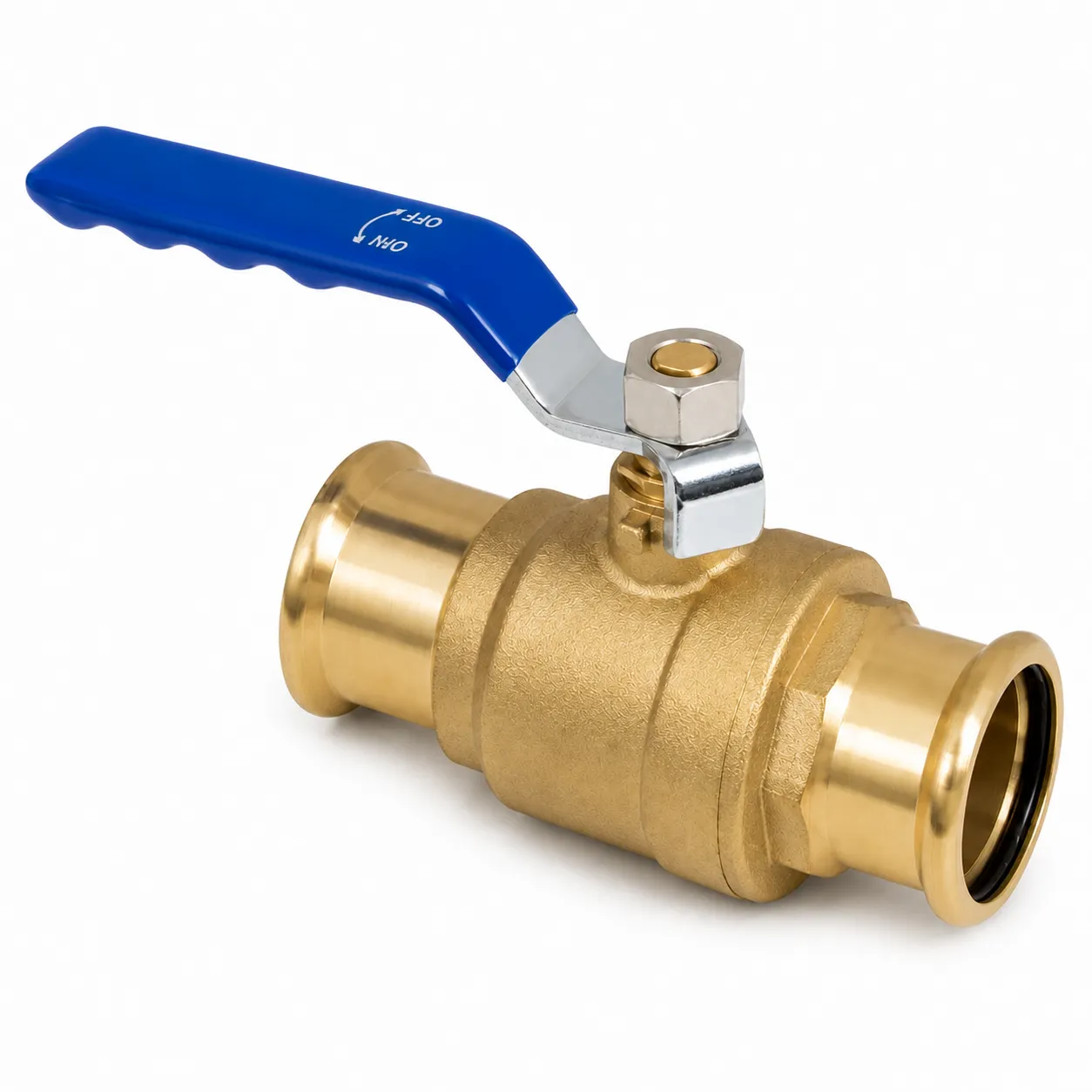

Copper M Profile Press Fit Water Lever Ball Valve - Blue Handle
Product Options
Quick Trade Summary: Copper M-Profile Press Fit Full Bore Lever Ball Valve (Blue)
MEP Stock supplies heavy-duty full bore copper M-profile press fit lever ball valves with high-visibility blue handles for dedicated cold water, potable mains, and chilled services. Manufactured from premium dezincification-resistant (DZR) brass with integral CW024A copper press sockets, each valve features hard-wearing PTFE ball seats and factory-lubricated black EPDM press O-rings. Delivers 100% full-bore unrestricted flow and quarter-turn isolation without threaded adaptors, blowtorches, or hot works permits.
Full Bore Mechanical Isolation for High-Performance Potable Water Systems
Installing inline isolation valves on commercial water headers and plant rooms frequently involves threading male adaptors into female valves, doubling joint counts and introducing potential leak points. Conforming to BS EN 1254-7, our copper M-profile press fit lever ball valves integrate calibrated press sockets directly onto a DZR brass valve body. With a quarter-turn steel lever handle encased in durable blue vinyl, mechanical contractors achieve instant optical status verification (parallel = OPEN, 90° = CLOSED) and true full-bore flow with zero hydraulic turbulence.
Engineering Specifications & Material Standards
| Parameter | Specification Standard |
|---|---|
| Press Socket Material | Deoxidised High Phosphorus Copper CW024A / Cu-DHP (BS EN 1254-7) |
| Valve Body & Stem Material | Dezincification Resistant (DZR) Brass CW617N / CW602N (Blowout-Proof Stem) |
| Internal Ball & Seating | Hard Chrome-Plated DZR Brass Sphere with Virgin PTFE Seats |
| Press Sealing Element | Factory-Lubricated Black EPDM (Ethylene Propylene Diene Monomer) |
| Bore Geometry | Full Bore (Internal port matches pipe diameter, minimal pressure drop) |
| Press Profile Compatibility | M-Profile Press Jaws (Rothenberger, Milwaukee, Novopress, REMS, Klauke) |
| Operating Pressure (Water) | Max 16 bar (PN16) |
| Operating Temperature Range | -20°C to +110°C (-4°F to 230°F) |
| Safety Feature | Leak-Before-Press (LBP) bypass channel identifies unpressed joints |
| Statutory Compliance | WRAS Approved Material, Water Supply (Water Fittings) Regulations 1999 |
Step-by-Step Press-Fit Ball Valve Installation Guide
- Square Tube Cuts: Cut BS EN 1057 copper tube cleanly at 90° using a rotary pipe wheel cutter. Avoid hacksaws to eliminate burred or uneven faces.
- Internal & External Deburring: Thoroughly deburr both the inner and outer tube surfaces using a calibrated deburring reamer. A sharp metal burr will tear the black EPDM O-ring during insertion.
- Mark Insertion Depth: Measure the socket depth on each end of the valve and scribe the mark clearly onto the copper pipe with a permanent marker.
- Inspect O-Ring Seating: Ensure both factory-lubricated EPDM O-rings are clean, seated correctly in their toroidal grooves, and free of grit.
- Full Bottoming-Out: Slide the valve onto the pipe until the pipe hits the internal shoulder stop and the insertion mark aligns flush with the socket collar.
- Mechanical Pressing: Position calibrated M-profile jaws perpendicular to the fitting bead. Cycle the pressing machine completely until the mechanical crimp is executed. Repeat for the opposing socket.
- Operation Check: Cycle the blue lever handle 90° from open to closed to ensure free movement and proper stem alignment.
Frequently Asked Questions: Copper Press Fit Lever Ball Valves
Is this press-fit ball valve full bore, and why does that matter for pump and heating circuits?
Yes, this valve features a true full-bore design matching the internal diameter of the copper tube. In a full-bore ball valve, the machined port through the brass sphere is identical in diameter to the connected pipe (e.g., a 22mm valve has a full 22mm opening). This ensures zero restriction, minimal hydraulic friction, and negligible pressure drop (maximum Kv value), which is vital for boiler primary flow and return lines, heat pump circuits, and circulating pump feeds where reduced-bore valves cause cavitation and pump motor strain.
What is the industry meaning of the blue lever handle?
The blue lever handle designates cold water services, potable mains feeds, or chilled water circuits. In UK mechanical plant rooms and domestic service cupboards, blue lever handles provide instant visual service identification for cold drinking water supplies and incoming mains, whereas red lever handles designate domestic hot water (DHW) and heating flow lines. The insulated vinyl sleeve protects the operator and provides clear optical confirmation: parallel with pipe indicates fully OPEN; perpendicular (90°) indicates fully CLOSED.
Can this lever ball valve be used to throttle or balance water flow?
No, ball valves are strictly designed for full on/off isolation and must never be left partially open to throttle flow. Leaving a quarter-turn ball valve partially cracked exposes the edge of the polished chrome ball and the virgin PTFE seats to high-velocity water jetting, which rapidly erodes the soft elastomeric sealing face and causes permanent wire-drawing leaks. For flow throttling or hydraulic balancing, use a dedicated lockshield valve, regulating valve, or commissioning balancing set.
What press jaw profile is required to crimp these valve sockets?
Both integrated copper sockets strictly require M-Profile press jaws. Calibrated press tools from Rothenberger (Compact / Twin Turbo), Milwaukee (M12 / M18 Force Logic), Novopress (ACO103 / ACO203), and REMS fitted with M-contour jaws will execute the certified mechanical joint. Do not use V-profile or U-profile jaws on M-profile fittings.
What are the pressure and temperature ratings for this valve?
Rated for operating pressures up to 16 bar (PN16) and temperatures from -20°C to +110°C. Engineered with blowout-proof DZR brass stems, PTFE ball seats, and factory-installed black EPDM press seals, this valve handles boosted cold water mains, hydronic heating circuits with standard corrosion inhibitors, and chilled water fan coil supply lines.
How does the Leak-Before-Press (LBP) feature protect the installation?
Engineered EPDM bypass channels deliberately leak test fluid at low testing pressures (0.1 to 3 bar) if left unpressed. During hydrostatic pressure testing, any valve socket that has been dry-fitted onto the copper pipe but missed during the tool cycle will immediately produce a visible drip, preventing unpressed joints from being overlooked before system commissioning.
Order Copper Press Fit Lever Ball Valves Online
Available in 15mm, 22mm, 28mm, and 35mm with blue lever handles for cold water services, or red lever handles for heating and hot water.
Quick Trade Summary: Copper M-Profile Press Fit Full Bore Lever Ball Valve (Blue)
MEP Stock supplies heavy-duty full bore copper M-profile press fit lever ball valves with high-visibility blue handles for dedicated cold water, potable mains, and chilled services. Manufactured from premium dezincification-resistant (DZR) brass with integral CW024A copper press sockets, each valve features hard-wearing PTFE ball seats and factory-lubricated black EPDM press O-rings. Delivers 100% full-bore unrestricted flow and quarter-turn isolation without threaded adaptors, blowtorches, or hot works permits.
Full Bore Mechanical Isolation for High-Performance Potable Water Systems
Installing inline isolation valves on commercial water headers and plant rooms frequently involves threading male adaptors into female valves, doubling joint counts and introducing potential leak points. Conforming to BS EN 1254-7, our copper M-profile press fit lever ball valves integrate calibrated press sockets directly onto a DZR brass valve body. With a quarter-turn steel lever handle encased in durable blue vinyl, mechanical contractors achieve instant optical status verification (parallel = OPEN, 90° = CLOSED) and true full-bore flow with zero hydraulic turbulence.
Engineering Specifications & Material Standards
| Parameter | Specification Standard |
|---|---|
| Press Socket Material | Deoxidised High Phosphorus Copper CW024A / Cu-DHP (BS EN 1254-7) |
| Valve Body & Stem Material | Dezincification Resistant (DZR) Brass CW617N / CW602N (Blowout-Proof Stem) |
| Internal Ball & Seating | Hard Chrome-Plated DZR Brass Sphere with Virgin PTFE Seats |
| Press Sealing Element | Factory-Lubricated Black EPDM (Ethylene Propylene Diene Monomer) |
| Bore Geometry | Full Bore (Internal port matches pipe diameter, minimal pressure drop) |
| Press Profile Compatibility | M-Profile Press Jaws (Rothenberger, Milwaukee, Novopress, REMS, Klauke) |
| Operating Pressure (Water) | Max 16 bar (PN16) |
| Operating Temperature Range | -20°C to +110°C (-4°F to 230°F) |
| Safety Feature | Leak-Before-Press (LBP) bypass channel identifies unpressed joints |
| Statutory Compliance | WRAS Approved Material, Water Supply (Water Fittings) Regulations 1999 |
Step-by-Step Press-Fit Ball Valve Installation Guide
- Square Tube Cuts: Cut BS EN 1057 copper tube cleanly at 90° using a rotary pipe wheel cutter. Avoid hacksaws to eliminate burred or uneven faces.
- Internal & External Deburring: Thoroughly deburr both the inner and outer tube surfaces using a calibrated deburring reamer. A sharp metal burr will tear the black EPDM O-ring during insertion.
- Mark Insertion Depth: Measure the socket depth on each end of the valve and scribe the mark clearly onto the copper pipe with a permanent marker.
- Inspect O-Ring Seating: Ensure both factory-lubricated EPDM O-rings are clean, seated correctly in their toroidal grooves, and free of grit.
- Full Bottoming-Out: Slide the valve onto the pipe until the pipe hits the internal shoulder stop and the insertion mark aligns flush with the socket collar.
- Mechanical Pressing: Position calibrated M-profile jaws perpendicular to the fitting bead. Cycle the pressing machine completely until the mechanical crimp is executed. Repeat for the opposing socket.
- Operation Check: Cycle the blue lever handle 90° from open to closed to ensure free movement and proper stem alignment.
Frequently Asked Questions: Copper Press Fit Lever Ball Valves
Is this press-fit ball valve full bore, and why does that matter for pump and heating circuits?
Yes, this valve features a true full-bore design matching the internal diameter of the copper tube. In a full-bore ball valve, the machined port through the brass sphere is identical in diameter to the connected pipe (e.g., a 22mm valve has a full 22mm opening). This ensures zero restriction, minimal hydraulic friction, and negligible pressure drop (maximum Kv value), which is vital for boiler primary flow and return lines, heat pump circuits, and circulating pump feeds where reduced-bore valves cause cavitation and pump motor strain.
What is the industry meaning of the blue lever handle?
The blue lever handle designates cold water services, potable mains feeds, or chilled water circuits. In UK mechanical plant rooms and domestic service cupboards, blue lever handles provide instant visual service identification for cold drinking water supplies and incoming mains, whereas red lever handles designate domestic hot water (DHW) and heating flow lines. The insulated vinyl sleeve protects the operator and provides clear optical confirmation: parallel with pipe indicates fully OPEN; perpendicular (90°) indicates fully CLOSED.
Can this lever ball valve be used to throttle or balance water flow?
No, ball valves are strictly designed for full on/off isolation and must never be left partially open to throttle flow. Leaving a quarter-turn ball valve partially cracked exposes the edge of the polished chrome ball and the virgin PTFE seats to high-velocity water jetting, which rapidly erodes the soft elastomeric sealing face and causes permanent wire-drawing leaks. For flow throttling or hydraulic balancing, use a dedicated lockshield valve, regulating valve, or commissioning balancing set.
What press jaw profile is required to crimp these valve sockets?
Both integrated copper sockets strictly require M-Profile press jaws. Calibrated press tools from Rothenberger (Compact / Twin Turbo), Milwaukee (M12 / M18 Force Logic), Novopress (ACO103 / ACO203), and REMS fitted with M-contour jaws will execute the certified mechanical joint. Do not use V-profile or U-profile jaws on M-profile fittings.
What are the pressure and temperature ratings for this valve?
Rated for operating pressures up to 16 bar (PN16) and temperatures from -20°C to +110°C. Engineered with blowout-proof DZR brass stems, PTFE ball seats, and factory-installed black EPDM press seals, this valve handles boosted cold water mains, hydronic heating circuits with standard corrosion inhibitors, and chilled water fan coil supply lines.
How does the Leak-Before-Press (LBP) feature protect the installation?
Engineered EPDM bypass channels deliberately leak test fluid at low testing pressures (0.1 to 3 bar) if left unpressed. During hydrostatic pressure testing, any valve socket that has been dry-fitted onto the copper pipe but missed during the tool cycle will immediately produce a visible drip, preventing unpressed joints from being overlooked before system commissioning.
Order Copper Press Fit Lever Ball Valves Online
Available in 15mm, 22mm, 28mm, and 35mm with blue lever handles for cold water services, or red lever handles for heating and hot water.
