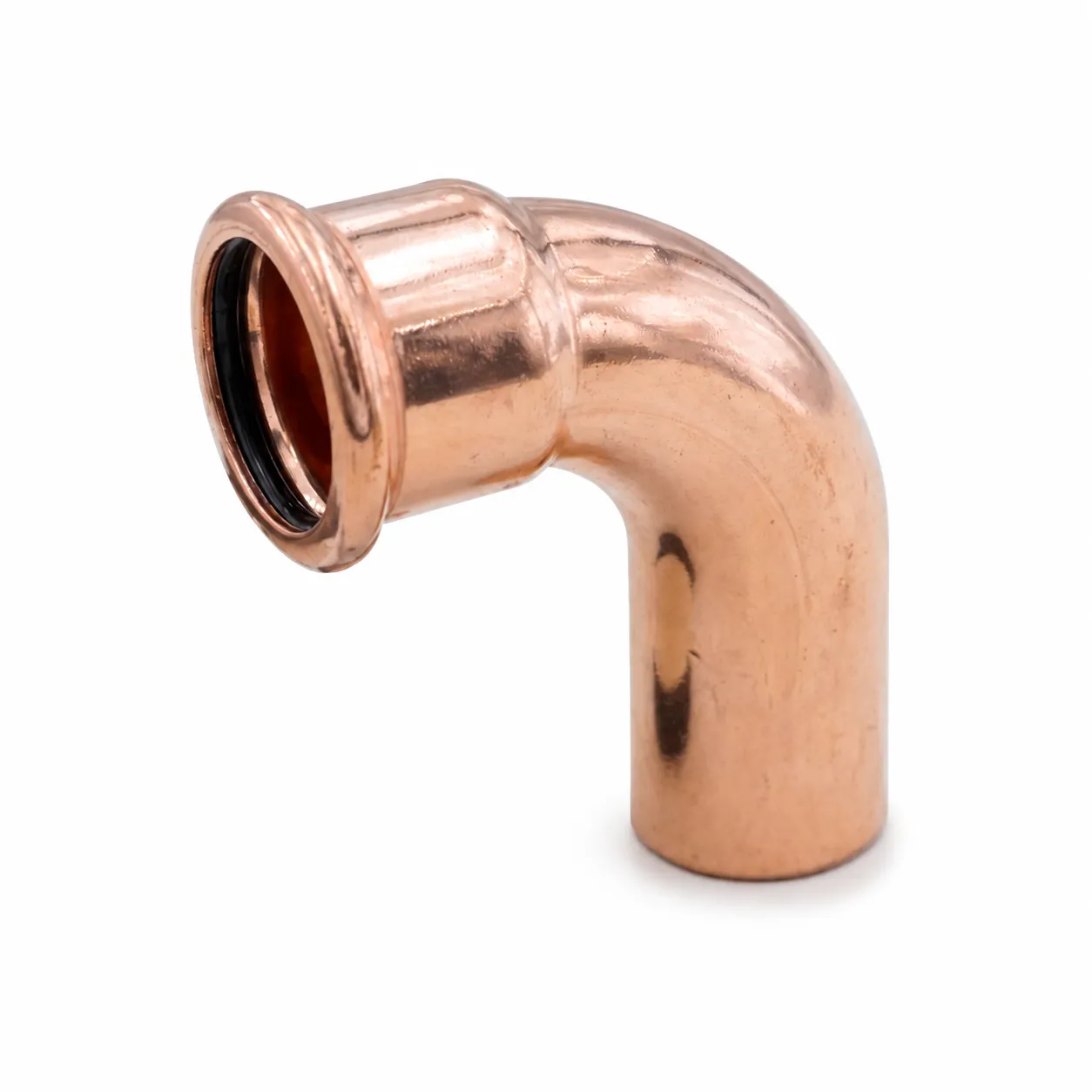

Copper M Profile Press Fit Water 90 Degree Street Elbow
Copper M Profile Press Fit Water 90 Degree Street Elbow
Product Options
| SKU | SIZE / OPTION | AVAILABILITY | PRICE | QTY | ACTION |
|---|---|---|---|---|---|
| PW - 22 | OUT OF STOCK | £0.92 Ex. VAT | |||
| PW - 22-P10 | IN STOCK | £9.20 Ex. VAT | |||
| PW - 22-P20 | IN STOCK | £17.68 Ex. VAT | |||
| PW - 22-P30 | IN STOCK | £25.81 Ex. VAT | |||
| PW - 23 | OUT OF STOCK | £1.60 Ex. VAT | |||
| PW - 23-P10 | IN STOCK | £16.00 Ex. VAT | |||
| PW - 23-P20 | IN STOCK | £30.75 Ex. VAT | |||
| PW - 23-P30 | IN STOCK | £44.88 Ex. VAT | |||
| PW - 24 | OUT OF STOCK | £2.82 Ex. VAT | |||
| PW - 24-P10 | IN STOCK | £28.20 Ex. VAT | |||
| PW - 24-P20 | IN STOCK | £54.20 Ex. VAT | |||
| PW - 24-P30 | IN STOCK | £79.11 Ex. VAT | |||
| PW - 25 | OUT OF STOCK | £4.58 Ex. VAT | |||
| PW - 25-P10 | IN STOCK | £45.80 Ex. VAT | |||
| PW - 25-P20 | IN STOCK | £88.03 Ex. VAT | |||
| PW - 25-P30 | IN STOCK | £128.48 Ex. VAT | |||
| PW - 26 | OUT OF STOCK | £7.76 Ex. VAT | |||
| PW - 26-P10 | IN STOCK | £77.55 Ex. VAT | |||
| PW - 26-P20 | IN STOCK | £149.93 Ex. VAT | |||
| PW - 26-P30 | IN STOCK | £220.24 Ex. VAT | |||
| PW - 27 | OUT OF STOCK | £12.01 Ex. VAT | |||
| PW - 27-P10 | IN STOCK | £120.10 Ex. VAT | |||
| PW - 27-P20 | IN STOCK | £230.83 Ex. VAT | |||
| PW - 27-P30 | IN STOCK | £336.92 Ex. VAT |
Quick Trade Summary: Copper M-Profile Press Fit 90° Street Elbow
MEP Stock supplies CW024A copper M-profile press fit 90-degree street elbows featuring one female press socket with black EPDM seal and one male spigot end. Designed for direct insertion into another fitting socket, saving space in tight manifolds and compact riser shafts.
Compact Male x Female 90° Turning for Tight Enclosures & Manifolds
Where plant rooms, boiler casings, and riser ducts leave zero room for intermediate copper tube lengths, our copper press street elbows connect directly into tees, valves, or standard elbows. Manufactured to BS EN 1254-7, the precision-calibrated male spigot bottoms out perfectly in any standard M-profile socket.
Engineering Specifications
| Fitting Material | Deoxidised High Phosphorus Copper CW024A (BS EN 1254-7) |
| Configuration | Male Spigot x Female Press Socket (Street / FTG x C) |
| Sealing Ring | Factory-Lubricated Black EPDM |
| Press Profile | M-Profile Press Jaws |
| Pressure Rating | Max 16 bar (PN16) |
| Temperature Range | -20°C to +110°C (-4°F to 230°F) |
| Certification | WRAS Approved Material |
BS EN Installation Protocol
- Step 1: Prepare Female Side — Cut copper tube square, deburr completely, and mark insertion depth.
- Step 2: Prepare Male Spigot — Inspect male spigot surface to ensure it is clean and free of burrs or dents.
- Step 3: Insert Male End — Insert male spigot directly into adjacent fitting socket until seated against internal stop.
- Step 4: Insert Pipe into Female End — Slide female socket onto copper tube to depth line.
- Step 5: Press Collars — Press both joints using certified M-profile jaws.
Frequently Asked Questions
What is the benefit of a street elbow over a standard elbow?
A street elbow has a male spigot end, allowing direct connection into another fitting.
A street elbow has a male spigot end, allowing direct connection into another fitting without cutting a short bridging piece of copper tube. This saves substantial installation time and tightens compact pipe assemblies.
What jaw profile is required?
This fitting strictly requires M-Profile press jaws.
This fitting strictly requires M-Profile press jaws on the female socket collar.
Does the male spigot have an O-ring?
No. The male spigot is smooth copper that inserts into another fitting's O-ring socket.
No. The male spigot is precision-calibrated copper tube dimensions (BS EN 1057 outer diameter) that slides into another fitting which houses the O-ring.
Is this street elbow WRAS approved?
Yes, fully certified for potable drinking water and heating systems.
Yes, fully certified for wholesome potable drinking water and hydronic heating systems under BS EN 1254-7.
What pressure rating does this fitting support?
Rated to 16 bar (PN16) across operating temperatures of -20°C to +110°C.
Rated to 16 bar (PN16) across operating temperatures of -20°C to +110°C.
What sizes are available in street elbows?
Available in 15mm, 22mm, 28mm, 35mm, 42mm, and 54mm diameters.
Available in 15mm, 22mm, 28mm, 35mm, 42mm, and 54mm diameters in single pieces and trade packs.
Order Trade Copper M-Profile 90° Street Elbows Online
Available from 15mm to 54mm in single pieces and contractor trade packs.
Browse Full Water Press Range →Quick Trade Summary: Copper M-Profile Press Fit 90° Street Elbow
MEP Stock supplies CW024A copper M-profile press fit 90-degree street elbows featuring one female press socket with black EPDM seal and one male spigot end. Designed for direct insertion into another fitting socket, saving space in tight manifolds and compact riser shafts.
Compact Male x Female 90° Turning for Tight Enclosures & Manifolds
Where plant rooms, boiler casings, and riser ducts leave zero room for intermediate copper tube lengths, our copper press street elbows connect directly into tees, valves, or standard elbows. Manufactured to BS EN 1254-7, the precision-calibrated male spigot bottoms out perfectly in any standard M-profile socket.
Engineering Specifications
| Fitting Material | Deoxidised High Phosphorus Copper CW024A (BS EN 1254-7) |
| Configuration | Male Spigot x Female Press Socket (Street / FTG x C) |
| Sealing Ring | Factory-Lubricated Black EPDM |
| Press Profile | M-Profile Press Jaws |
| Pressure Rating | Max 16 bar (PN16) |
| Temperature Range | -20°C to +110°C (-4°F to 230°F) |
| Certification | WRAS Approved Material |
BS EN Installation Protocol
- Step 1: Prepare Female Side — Cut copper tube square, deburr completely, and mark insertion depth.
- Step 2: Prepare Male Spigot — Inspect male spigot surface to ensure it is clean and free of burrs or dents.
- Step 3: Insert Male End — Insert male spigot directly into adjacent fitting socket until seated against internal stop.
- Step 4: Insert Pipe into Female End — Slide female socket onto copper tube to depth line.
- Step 5: Press Collars — Press both joints using certified M-profile jaws.
Frequently Asked Questions
What is the benefit of a street elbow over a standard elbow?
A street elbow has a male spigot end, allowing direct connection into another fitting.
A street elbow has a male spigot end, allowing direct connection into another fitting without cutting a short bridging piece of copper tube. This saves substantial installation time and tightens compact pipe assemblies.
What jaw profile is required?
This fitting strictly requires M-Profile press jaws.
This fitting strictly requires M-Profile press jaws on the female socket collar.
Does the male spigot have an O-ring?
No. The male spigot is smooth copper that inserts into another fitting's O-ring socket.
No. The male spigot is precision-calibrated copper tube dimensions (BS EN 1057 outer diameter) that slides into another fitting which houses the O-ring.
Is this street elbow WRAS approved?
Yes, fully certified for potable drinking water and heating systems.
Yes, fully certified for wholesome potable drinking water and hydronic heating systems under BS EN 1254-7.
What pressure rating does this fitting support?
Rated to 16 bar (PN16) across operating temperatures of -20°C to +110°C.
Rated to 16 bar (PN16) across operating temperatures of -20°C to +110°C.
What sizes are available in street elbows?
Available in 15mm, 22mm, 28mm, 35mm, 42mm, and 54mm diameters.
Available in 15mm, 22mm, 28mm, 35mm, 42mm, and 54mm diameters in single pieces and trade packs.
Order Trade Copper M-Profile 90° Street Elbows Online
Available from 15mm to 54mm in single pieces and contractor trade packs.
Browse Full Water Press Range →You May Also Like
