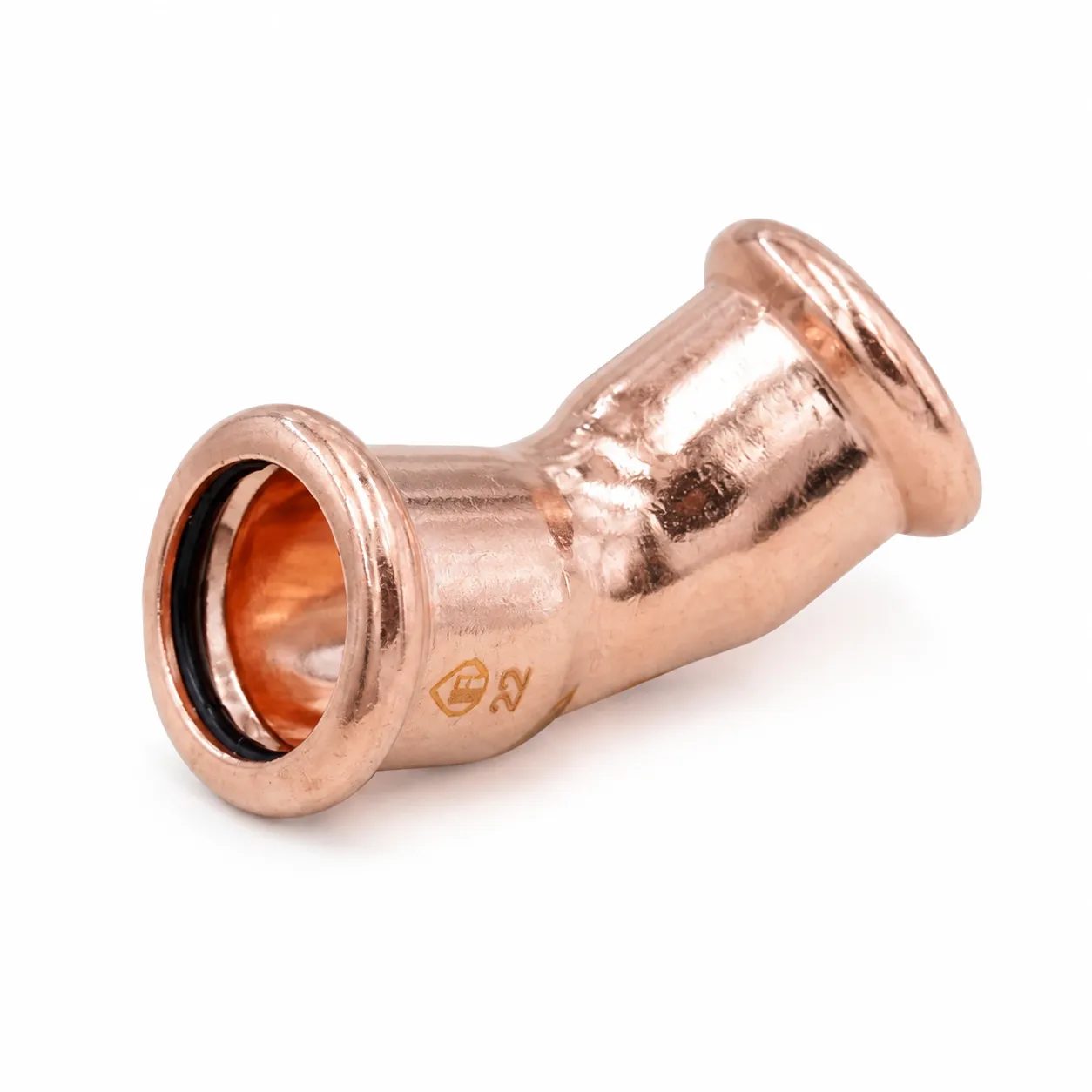

Copper M Profile Press Fit Water 45 Degree Elbow
Copper M Profile Press Fit Water 45 Degree Elbow
Product Options
| SKU | SIZE / OPTION | AVAILABILITY | PRICE | QTY | ACTION |
|---|---|---|---|---|---|
| PW - 28 | IN STOCK | £0.84 Ex. VAT | |||
| PW - 28-P10 | IN STOCK | £8.40 Ex. VAT | |||
| PW - 28-P20 | IN STOCK | £16.14 Ex. VAT | |||
| PW - 28-P30 | IN STOCK | £23.56 Ex. VAT | |||
| PW - 29 | IN STOCK | £1.48 Ex. VAT | |||
| PW - 29-P10 | IN STOCK | £14.80 Ex. VAT | |||
| PW - 29-P20 | IN STOCK | £28.45 Ex. VAT | |||
| PW - 29-P30 | IN STOCK | £41.52 Ex. VAT | |||
| PW - 30 | IN STOCK | £2.14 Ex. VAT | |||
| PW - 30-P10 | IN STOCK | £21.40 Ex. VAT | |||
| PW - 30-P20 | IN STOCK | £41.13 Ex. VAT | |||
| PW - 30-P30 | IN STOCK | £60.03 Ex. VAT | |||
| PW - 31 | IN STOCK | £3.79 Ex. VAT | |||
| PW - 31-P10 | IN STOCK | £37.90 Ex. VAT | |||
| PW - 31-P20 | IN STOCK | £72.84 Ex. VAT | |||
| PW - 31-P30 | IN STOCK | £106.32 Ex. VAT | |||
| PW - 32 | IN STOCK | £7.56 Ex. VAT | |||
| PW - 32-P10 | IN STOCK | £75.60 Ex. VAT | |||
| PW - 32-P20 | IN STOCK | £146.16 Ex. VAT | |||
| PW - 32-P30 | IN STOCK | £214.70 Ex. VAT | |||
| PW - 33 | IN STOCK | £10.85 Ex. VAT | |||
| PW - 33-P10 | IN STOCK | £108.45 Ex. VAT | |||
| PW - 33-P20 | IN STOCK | £209.67 Ex. VAT | |||
| PW - 33-P30 | IN STOCK | £308.00 Ex. VAT |
Quick Trade Summary: Copper M-Profile Press Fit 45° Elbow
MEP Stock supplies CW024A copper M-profile press fit 45-degree elbows for smooth directional offsets and hydraulic flow optimization in commercial and domestic pipework. Features factory-lubricated black EPDM O-rings with leak-before-press technology rated up to 16 bar.
Smooth 45° Hydraulic Offsets for Reduced Pressure Drop
Where piping offsets around obstacles or drops into service risers require minimized turbulence, our M-profile copper 45-degree elbows offer significantly lower hydraulic resistance than standard 90-degree bends. Precision manufactured to BS EN 1254-7 with certified toroidal beads.
Engineering Specifications
| Fitting Material | Deoxidised High Phosphorus Copper CW024A (BS EN 1254-7) |
| Pipe Standard | BS EN 1057 Copper Tube (Table X R250 Half-Hard / R290 Hard) |
| Sealing Ring | Factory-Lubricated Black EPDM |
| Press Profile | M-Profile Press Jaws |
| Pressure Rating | Max 16 bar (PN16) |
| Temperature Range | -20°C to +110°C (-4°F to 230°F) |
| Certification | WRAS Approved Material |
BS EN Installation Protocol
- Step 1: Square Cut — Cut copper tube cleanly at 90° using a rotary pipe wheel cutter.
- Step 2: Deburr Cleanly — Deburr inner and outer edges thoroughly to prevent scoring the EPDM seal.
- Step 3: Mark Depth — Measure socket stop depth and mark clearly on pipe.
- Step 4: Insert to Stop — Push elbow onto pipe until firmly seated against internal stop.
- Step 5: Full Press Cycle — Mount M jaw square over bead and complete full press compression cycle.
Frequently Asked Questions
Why use a 45-degree elbow instead of a 90-degree elbow?
A 45° elbow reduces hydraulic head loss and turbulence across offset runs.
A 45° elbow reduces hydraulic head loss and turbulence across offset runs, preserving pump velocity in high-flow heating and secondary domestic hot water return circuits.
What jaw profile is required for this 45-degree elbow?
This elbow strictly requires M-Profile press jaws.
This elbow strictly requires M-Profile press jaws. Ensure jaws from Rothenberger, Novopress, Klauke, or Milwaukee seat squarely without cocking against adjacent fittings.
What is the minimum pipe clearance between two 45-degree elbows in an offset?
Allow at least 15mm of exposed pipe between fitting collars on 15mm-22mm tube.
Allow at least 15mm of exposed pipe between fitting collars on 15mm-22mm tube to ensure press jaws can seat flat against the bead without catching the adjacent fitting collar.
Is this 45-degree elbow WRAS approved?
Yes, fully WRAS approved for potable drinking water.
Yes, fully WRAS approved for potable drinking water and pressurized closed hydronic heating loops.
Does this fitting have Leak-Before-Press safety?
Yes, black EPDM O-rings weep at low pressure (0.1 to 3 bar) if unpressed.
Yes, black EPDM O-rings weep at low pressure (0.1 to 3 bar) if unpressed, ensuring instant detection during commissioning.
What sizes are stocked?
Available in 15mm, 22mm, 28mm, 35mm, 42mm, and 54mm diameters.
Available in 15mm, 22mm, 28mm, 35mm, 42mm, and 54mm diameters with trade pack savings.
Order Trade Copper M-Profile 45° Press Elbows Online
Available from 15mm to 54mm in single units and bulk trade packs.
Browse Full Water Press Range →Quick Trade Summary: Copper M-Profile Press Fit 45° Elbow
MEP Stock supplies CW024A copper M-profile press fit 45-degree elbows for smooth directional offsets and hydraulic flow optimization in commercial and domestic pipework. Features factory-lubricated black EPDM O-rings with leak-before-press technology rated up to 16 bar.
Smooth 45° Hydraulic Offsets for Reduced Pressure Drop
Where piping offsets around obstacles or drops into service risers require minimized turbulence, our M-profile copper 45-degree elbows offer significantly lower hydraulic resistance than standard 90-degree bends. Precision manufactured to BS EN 1254-7 with certified toroidal beads.
Engineering Specifications
| Fitting Material | Deoxidised High Phosphorus Copper CW024A (BS EN 1254-7) |
| Pipe Standard | BS EN 1057 Copper Tube (Table X R250 Half-Hard / R290 Hard) |
| Sealing Ring | Factory-Lubricated Black EPDM |
| Press Profile | M-Profile Press Jaws |
| Pressure Rating | Max 16 bar (PN16) |
| Temperature Range | -20°C to +110°C (-4°F to 230°F) |
| Certification | WRAS Approved Material |
BS EN Installation Protocol
- Step 1: Square Cut — Cut copper tube cleanly at 90° using a rotary pipe wheel cutter.
- Step 2: Deburr Cleanly — Deburr inner and outer edges thoroughly to prevent scoring the EPDM seal.
- Step 3: Mark Depth — Measure socket stop depth and mark clearly on pipe.
- Step 4: Insert to Stop — Push elbow onto pipe until firmly seated against internal stop.
- Step 5: Full Press Cycle — Mount M jaw square over bead and complete full press compression cycle.
Frequently Asked Questions
Why use a 45-degree elbow instead of a 90-degree elbow?
A 45° elbow reduces hydraulic head loss and turbulence across offset runs.
A 45° elbow reduces hydraulic head loss and turbulence across offset runs, preserving pump velocity in high-flow heating and secondary domestic hot water return circuits.
What jaw profile is required for this 45-degree elbow?
This elbow strictly requires M-Profile press jaws.
This elbow strictly requires M-Profile press jaws. Ensure jaws from Rothenberger, Novopress, Klauke, or Milwaukee seat squarely without cocking against adjacent fittings.
What is the minimum pipe clearance between two 45-degree elbows in an offset?
Allow at least 15mm of exposed pipe between fitting collars on 15mm-22mm tube.
Allow at least 15mm of exposed pipe between fitting collars on 15mm-22mm tube to ensure press jaws can seat flat against the bead without catching the adjacent fitting collar.
Is this 45-degree elbow WRAS approved?
Yes, fully WRAS approved for potable drinking water.
Yes, fully WRAS approved for potable drinking water and pressurized closed hydronic heating loops.
Does this fitting have Leak-Before-Press safety?
Yes, black EPDM O-rings weep at low pressure (0.1 to 3 bar) if unpressed.
Yes, black EPDM O-rings weep at low pressure (0.1 to 3 bar) if unpressed, ensuring instant detection during commissioning.
What sizes are stocked?
Available in 15mm, 22mm, 28mm, 35mm, 42mm, and 54mm diameters.
Available in 15mm, 22mm, 28mm, 35mm, 42mm, and 54mm diameters with trade pack savings.
Order Trade Copper M-Profile 45° Press Elbows Online
Available from 15mm to 54mm in single units and bulk trade packs.
