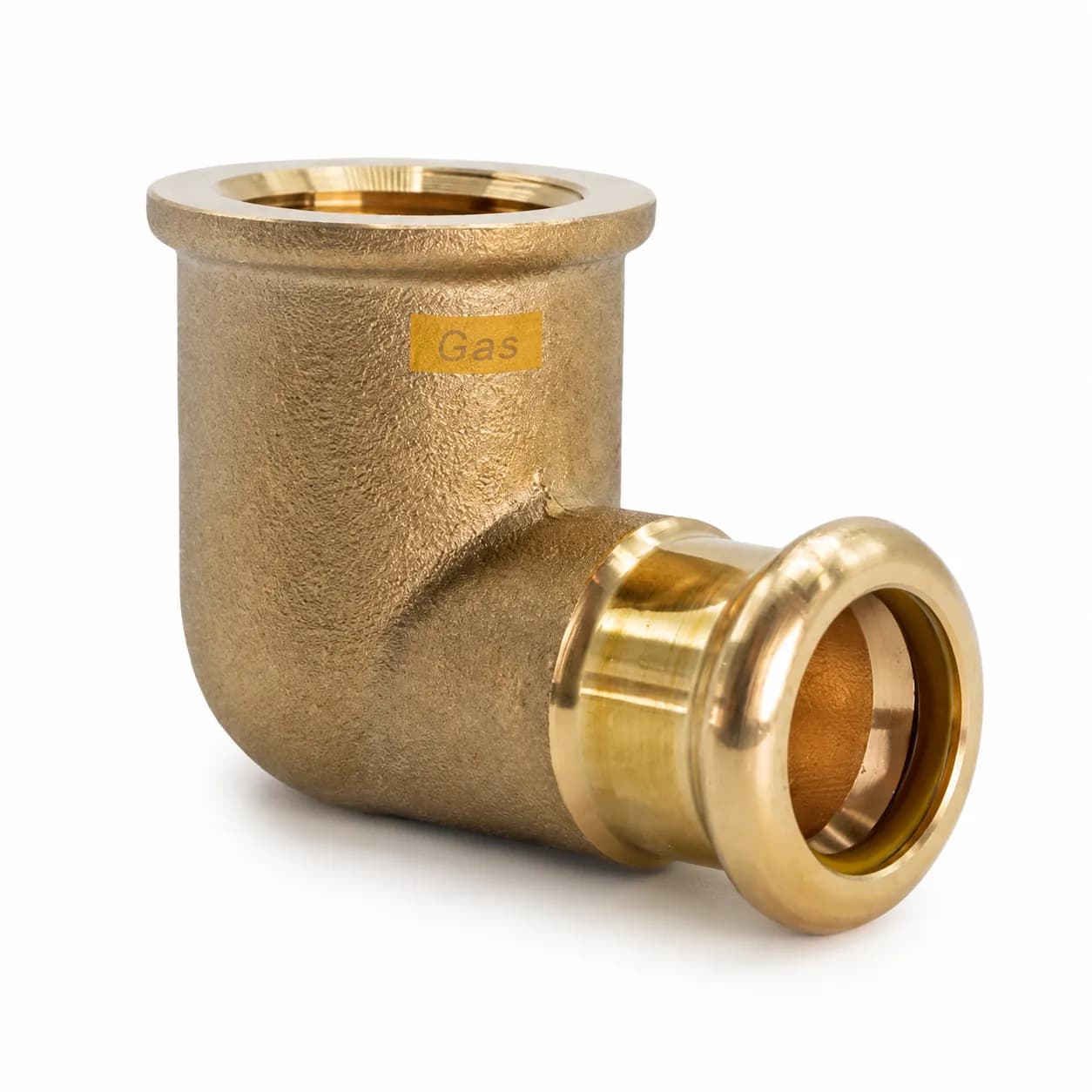

Pressfit Gas Female 90 Degree Elbow
Brand: MEP Stock
In Stock
PRODUCT OVERVIEW
Pressfit Gas Female 90 Degree Elbow
The Pressfit Gas Female 90 Degree Elbow creates a 90 degree transition between compatible copper gas pipework and a male BSP threaded component. Its copper-alloy construction and yellow HNBR sealing ring support secure, flame-free installation on the press-fit side.
25 YEAR WARRANTY
£2.11Ex. VAT
Pressfit Gas Female 90 Degree Elbow
Brand: MEP Stock
In Stock
PRODUCT OVERVIEW
Pressfit Gas Female 90 Degree Elbow
The Pressfit Gas Female 90 Degree Elbow creates a 90 degree transition between compatible copper gas pipework and a male BSP threaded component. Its copper-alloy construction and yellow HNBR sealing ring support secure, flame-free installation on the press-fit side.
25 YEAR WARRANTY
£2.11Ex. VAT
Product Options
| SKU | SIZE / OPTION | AVAILABILITY | PRICE | QTY | ACTION |
|---|---|---|---|---|---|
| PG - 102 | IN STOCK | £2.11 Ex. VAT | |||
| PG - 102 - P10 | IN STOCK | £21.10 Ex. VAT | |||
| PG - 102 - P20 | IN STOCK | £40.55 Ex. VAT | |||
| PG - 102 - P30 | IN STOCK | £59.19 Ex. VAT | |||
| PG - 103 | IN STOCK | £2.61 Ex. VAT | |||
| PG - 103 - P10 | IN STOCK | £26.10 Ex. VAT | |||
| PG - 103 - P20 | IN STOCK | £50.16 Ex. VAT | |||
| PG - 103 - P30 | IN STOCK | £73.22 Ex. VAT | |||
| PG - 104 | IN STOCK | £3.85 Ex. VAT | |||
| PG - 104 - P10 | IN STOCK | £38.50 Ex. VAT | |||
| PG - 104 - P20 | IN STOCK | £74.00 Ex. VAT | |||
| PG - 104 - P30 | IN STOCK | £108.00 Ex. VAT |
Copper M Profile Press Fit Gas Female 90° Elbow
BS EN 1254-7 & BS 6891 Compliant · Yellow HNBR Gas Seals · 25-Year Warranty
The Copper Press Fit Gas Female 90° Elbow provides a permanent, flame-free transition between UK standard copper tube (BS EN 1057) and male BSP threaded components. Engineered with precision M-profile contours and factory-fitted yellow HNBR (Hydrogenated Nitrile Butadiene Rubber) O-rings, this fitting enables fast, hot-works-free 90-degree directional changes on domestic, commercial, and industrial gas pipework.
Profile & Tool Compatibility
M-Profile Press Collar
Compatible with Novopress, Milwaukee, Rothenberger, and Rems M-contour pressing jaws.
Gas Seal Specification
Yellow HNBR O-Ring
Resistant to aliphatic hydrocarbons, Natural Gas (methane), and LPG vapour (-20°C to +70°C).
Thread Specification
Parallel Female BSP (BS EN 10226-1 / ISO 7-1)
Precision cut female threads for connection to gas valves, meters, and test points.
Pressure & Standards
PN 5 (Max 5 Bar Operating Pressure)
Fully certified to BS EN 1254-7, BSI Kitemark, and DVGW gas safety standards.
Key Installer Benefits
- Zero Hot Works: Eliminates blowtorches, gas bottles, burn shields, and mandatory hot works permit waiting periods.
- Permanent Leak-Tight Press Joint: Mechanical three-point deformation guarantees structural strength and rotational lock.
- Dual Gas Family Compatibility: Certified for 2nd Family (Natural Gas) and 3rd Family (LPG vapour / Propane / Butane) installations.
- Direct Appliance Transitions: Ideal 90° drop fitting for connecting copper supply pipework into boiler male gas cocks, cooker bayonets, and gas meter boxes.
- High Thermal & Mechanical Resistance: High-grade CW024A / DHP copper conforming to BS EN 1057 table X tube sizing.
Frequently Asked Trade Questions (Installer FAQs)
1. Can this press fit gas female elbow be used on LPG systems?
Yes. The factory-installed yellow HNBR O-ring is fully certified under BS EN 1254-7 and UKLPG Code of Practice 22 for both Natural Gas (methane) and LPG vapour (propane/butane) operating up to 5 bar.
2. What press jaw contour must be used?
These fittings feature an M-profile collar and must be crimped using calibrated M-Profile pressing jaws or slings. Do not use V-profile or U-profile jaws on M-press fittings as this will cause joint distortion.
3. How should the female BSP threaded end be sealed?
When joining to a male BSP taper or parallel thread, use an approved gas-rated anaerobic thread sealant (conforming to EN 751-1) or heavy-duty yellow gas PTFE tape conforming to BS EN 751-3 / BS 4375. Always avoid over-tightening into the copper alloy body.
4. Can this fitting be installed on drinking water pipework?
No. In accordance with UK plumbing regulations, water press fittings use black EPDM O-rings and carry WRAS approval. Gas fittings with yellow HNBR O-rings should remain strictly dedicated to gas installations to maintain full statutory traceability.
5. What tightness testing procedure is required after pressing?
All installations must undergo standard tightness testing in accordance with IGE/UP/1B (tightness testing and direct purging of small installations) or BS 6891 using a calibrated digital manometer before commissioning.
Statutory Gas Safety Notice: In the UK, all gas pipework alterations must be carried out by a competent person holding current Gas Safe Registration in accordance with the Gas Safety (Installation and Use) Regulations 1998 (GSIUR).
MEP STOCK · CERTIFIED UK TRADE SUPPLIES · NEXT DAY DISPATCH
Copper M Profile Press Fit Gas Female 90° Elbow
BS EN 1254-7 & BS 6891 Compliant · Yellow HNBR Gas Seals · 25-Year Warranty
The Copper Press Fit Gas Female 90° Elbow provides a permanent, flame-free transition between UK standard copper tube (BS EN 1057) and male BSP threaded components. Engineered with precision M-profile contours and factory-fitted yellow HNBR (Hydrogenated Nitrile Butadiene Rubber) O-rings, this fitting enables fast, hot-works-free 90-degree directional changes on domestic, commercial, and industrial gas pipework.
Profile & Tool Compatibility
M-Profile Press Collar
Compatible with Novopress, Milwaukee, Rothenberger, and Rems M-contour pressing jaws.
Gas Seal Specification
Yellow HNBR O-Ring
Resistant to aliphatic hydrocarbons, Natural Gas (methane), and LPG vapour (-20°C to +70°C).
Thread Specification
Parallel Female BSP (BS EN 10226-1 / ISO 7-1)
Precision cut female threads for connection to gas valves, meters, and test points.
Pressure & Standards
PN 5 (Max 5 Bar Operating Pressure)
Fully certified to BS EN 1254-7, BSI Kitemark, and DVGW gas safety standards.
Key Installer Benefits
- Zero Hot Works: Eliminates blowtorches, gas bottles, burn shields, and mandatory hot works permit waiting periods.
- Permanent Leak-Tight Press Joint: Mechanical three-point deformation guarantees structural strength and rotational lock.
- Dual Gas Family Compatibility: Certified for 2nd Family (Natural Gas) and 3rd Family (LPG vapour / Propane / Butane) installations.
- Direct Appliance Transitions: Ideal 90° drop fitting for connecting copper supply pipework into boiler male gas cocks, cooker bayonets, and gas meter boxes.
- High Thermal & Mechanical Resistance: High-grade CW024A / DHP copper conforming to BS EN 1057 table X tube sizing.
Frequently Asked Trade Questions (Installer FAQs)
1. Can this press fit gas female elbow be used on LPG systems?
Yes. The factory-installed yellow HNBR O-ring is fully certified under BS EN 1254-7 and UKLPG Code of Practice 22 for both Natural Gas (methane) and LPG vapour (propane/butane) operating up to 5 bar.
2. What press jaw contour must be used?
These fittings feature an M-profile collar and must be crimped using calibrated M-Profile pressing jaws or slings. Do not use V-profile or U-profile jaws on M-press fittings as this will cause joint distortion.
3. How should the female BSP threaded end be sealed?
When joining to a male BSP taper or parallel thread, use an approved gas-rated anaerobic thread sealant (conforming to EN 751-1) or heavy-duty yellow gas PTFE tape conforming to BS EN 751-3 / BS 4375. Always avoid over-tightening into the copper alloy body.
4. Can this fitting be installed on drinking water pipework?
No. In accordance with UK plumbing regulations, water press fittings use black EPDM O-rings and carry WRAS approval. Gas fittings with yellow HNBR O-rings should remain strictly dedicated to gas installations to maintain full statutory traceability.
5. What tightness testing procedure is required after pressing?
All installations must undergo standard tightness testing in accordance with IGE/UP/1B (tightness testing and direct purging of small installations) or BS 6891 using a calibrated digital manometer before commissioning.
Statutory Gas Safety Notice: In the UK, all gas pipework alterations must be carried out by a competent person holding current Gas Safe Registration in accordance with the Gas Safety (Installation and Use) Regulations 1998 (GSIUR).
MEP STOCK · CERTIFIED UK TRADE SUPPLIES · NEXT DAY DISPATCH
