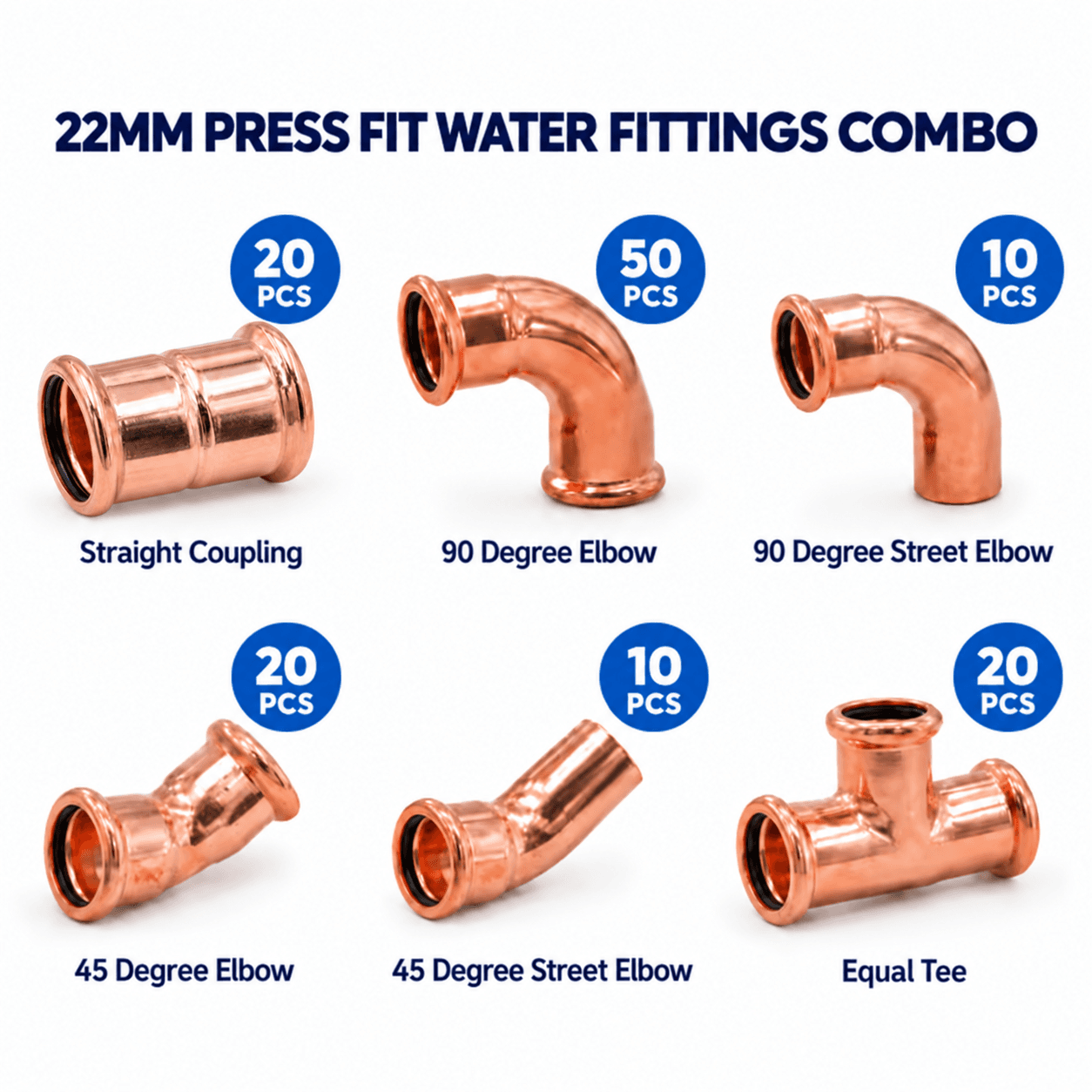

22mm Press Fit Water Fittings Combo Pack - 130 Pieces
22mm Press Fit Water Fittings Combo Pack
Professional 130-piece mixed pack of high-quality copper M Profile press fit fittings with black EPDM sealing rings for secure, flame-free installation.
PACK CONTENTS

22mm Press Fit Water Fittings Combo Pack - 130 Pieces
22mm Press Fit Water Fittings Combo Pack
Professional 130-piece mixed pack of high-quality copper M Profile press fit fittings with black EPDM sealing rings for secure, flame-free installation.
PACK CONTENTS
Quick Trade Summary: 22mm Copper M-Profile Press Fit Contractor Combo Pack
The MEP Stock 130-Piece 22mm Copper Press Fit Water Fittings Combo Pack is curated specifically for heating engineers and mechanical contractors executing high-volume boiler replacements, heating system repipes, and commercial cylinder installations. Fabricated from premium CW024A / DHP deoxidised copper with factory-lubricated black EPDM O-rings, this trade van bundle eliminates hot works permits, brazing torches, and dry-pipe downtime. Delivers certified 16-bar mechanical jointing across all essential 22mm directional fittings.
Engineered for High-Velocity Boiler Swaps & Heating Upgrades
Boiler swaps and central heating plant room repipes require fast, flame-free, reliable jointing. Traditional soldering in occupied properties introduces significant fire risks, demands hazardous hot-works insurance permits, and causes frustrating downtime waiting for old heating systems to completely drain down. Our 22mm M-profile press fit contractor pack solves these problems by providing the exact ratio of high-consumption 22mm fittings required for boiler flow and return circuits, hot water cylinder coils, and main distribution headers.
Engineering Specifications & Material Standards
| Parameter | Specification Standard |
|---|---|
| Fitting Body Material | Deoxidised High Phosphorus Copper CW024A / Cu-DHP (BS EN 1254-7) |
| Copper Tube Standard | BS EN 1057 (R250 Half-Hard / R290 Hard Table X) |
| Elastomeric Sealing Element | High-Grade Black EPDM (Ethylene Propylene Diene Monomer) |
| Press Profile Compatibility | 22mm M-Profile Press Jaws (Rothenberger, Milwaukee, Novopress, REMS, Klauke) |
| Operating Pressure (Water) | Max 16 bar (PN16) |
| Operating Temperature Range | -20°C to +110°C (-4°F to 230°F) |
| Safety Feature | Leak-Before-Press (LBP) bypass channel identifies unpressed joints |
| UK Statutory Compliance | WRAS Approved Material, Water Supply (Water Fittings) Regulations 1999 |
Step-by-Step M-Profile Press Installation Protocol
- Clean 90° Tube Cut: Cut BS EN 1057 22mm copper pipe strictly perpendicular using a sharp rotary pipe wheel cutter. Hacksaws must not be used.
- Internal & External Reaming: Thoroughly deburr both the inner and outer tube surfaces using a calibrated deburring tool. Sharp metal burrs will lacerate the black EPDM O-ring upon insertion, causing unrecoverable leaks.
- Insertion Depth Calibration: Measure the fitting socket depth and mark it clearly onto the copper tube with a permanent marker.
- Inspect Toroidal Groove: Check that the factory-lubricated EPDM seal is clean and correctly positioned in the bead.
- Full Bottoming-Out: Slide the fitting over the tube with a slight twisting motion until the pipe hits the internal stop and the insertion mark aligns flush with the socket rim.
- Mechanical Press Execution: Place calibrated 22mm M-profile pressing jaws square over the fitting bead. Cycle the pressing machine completely until the automatic release triggers.
Frequently Asked Questions: 22mm Copper Press Fit Fittings Combo Pack
Can I press these 22mm fittings on wet pipework or with residual water trickling through?
Yes, copper press-fit connections can be made on wet pipework with residual water present. Unlike capillary soldering—which requires pipework to be 100% bone-dry to allow solder to melt and flow—mechanical press jointing relies on calibrated radial compression of the copper bead and the internal EPDM O-ring. As long as the pipe is cut square, deburred inside and out, and wiped clean of grit or flux, damp or trickling copper pipes do not affect the mechanical crimp or joint integrity.
What press jaw profile is required for this 130-piece 22mm combo pack?
All fittings in this pack strictly require 22mm M-Profile press jaws. Standard UK press tools equipped with M-contour jaws—such as Rothenberger (Compact / Twin Turbo), Milwaukee (M12 / M18 Force Logic), Novopress (ACO103 / ACO203), and REMS (Mini-Press / Power-Press)—will execute the certified hexagonal deformation. Do not use V-profile or U-profile jaws on M-profile fittings, as doing so will crush the toroidal bead incorrectly and void manufacturer warranty.
Why are 90° and 45° street elbows (M x F) included in this contractor pack?
Street elbows feature one male spigot end that inserts directly into another press fitting, eliminating small linking pipe stubs. copper pipe stub. During boiler replacements, cylinder installs, and manifold hookups where clearance inside cupboards is severely restricted, using a 22mm street elbow directly off a tee or isolation valve saves critical installation depth, eliminates two unnecessary deburring steps, and creates clean, compact pipe geometry.
What is the minimum pipe clearance distance required between two adjacent 22mm press fittings?
Maintain a minimum spacing gap of 10mm to 15mm between the fitting collars on 22mm copper pipe. This clearance ensures the press tool jaws seat completely and squarely over the fitting bead without colliding with the shoulder of the adjacent fitting, while preventing mechanical pipe ovality during the crimp cycle.
Are these 22mm fittings suitable for boiler flow and return central heating pipework?
Yes, they are fully certified for central heating primary flow and return pipework up to 110°C and 16 bar. The black EPDM elastomeric sealing element is engineered specifically for closed-loop hydronic heating circuits containing standard chemical inhibitors (such as Fernox F1 or Sentinel X100) and glycol anti-freeze solutions up to 50% concentration.
How does the Leak-Before-Press (LBP) feature work across the fittings in this pack?
Every fitting features a precision-engineered bypass channel on the EPDM seal that leaks fluid during low-pressure testing if unpressed. During initial system filling and low-pressure testing (0.1 to 3 bar), unpressed joints produce a noticeable drip before the system reaches full pressure. Once cycled with an M-profile tool, the collar deforms permanently into a 16-bar leak-tight joint.
Upgrade Your Van Stock with the 22mm Contractor Bundle
130 commercial-grade 22mm fittings in one heavy-duty box. Save significantly compared to buying individual bags and keep your van stocked for your next boiler install.
Tool Compatibility & Direct Equivalent Part Numbers
Comprehensive 130-piece van stock combo pack of 22mm M-profile copper press-fit water fittings (couplers, 90° elbows, 45° elbows, equal tees, reducers, stop ends). Engineered to BS EN 1254-7 with WRAS certified black EPDM O-rings.
| Brand / Manufacturer | Equivalent Part Number | Interchangeability & Fitment |
|---|---|---|
| Geberit Mapress 22mm Van Pack | 60003 / 60103 / 60133 Series | Complete M-profile 22mm copper fitting equivalent |
| Pegler Yorkshire XPress 22mm Trade Pack | 68001 / 68071 / 68101 Series | 100% interchangeable M-jaw pressing fitments |
| Conex Bänninger >B< Press 22mm Pack | P5270 / P5002 / P5130 0220000 | Direct WRAS approved M-profile pressing equivalents |
