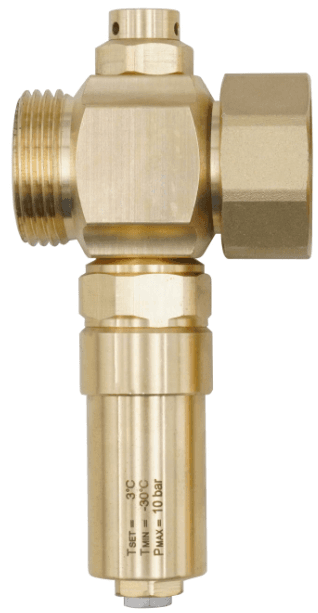

Antifreeze Valve Male to Female Swivel
A durable brass antifreeze valve designed to help protect heat pump and compatible water-based heating systems from freezing conditions. Featuring a male threaded inlet and female swivel connection for convenient installation, the valve automatically discharges system water when temperatures approach freezing. Available in 1" and 1 1/4" sizes.
Antifreeze Valve Male to Female Swivel
A durable brass antifreeze valve designed to help protect heat pump and compatible water-based heating systems from freezing conditions. Featuring a male threaded inlet and female swivel connection for convenient installation, the valve automatically discharges system water when temperatures approach freezing. Available in 1" and 1 1/4" sizes.
Product Options
Quick Trade Summary: Heat Pump Antifreeze Valve with Swivel
MEP Stock supplies mechanical thermostatic antifreeze valves for monobloc air-to-water heat pump outdoor pipework. Protects expensive heat pump plate heat exchangers and external flow/return circuits from freezing during winter power outages by automatically discharging water when temperatures drop to 3°C.
Zero-Power Mechanical Freeze Protection for External Heat Pump Pipework
In monobloc air source heat pump (ASHP) installations, primary hydronic pipework circulates outdoors. During winter power cuts or equipment breakdowns, standing water inside the condenser plate can freeze and burst within hours. Our mechanical antifreeze valves require zero electrical power, operating via an autonomous thermostatic capsule that opens at 3°C to drain chilled water and protect the investment.
Engineering Specifications
| Operating Medium | Potable Water & Water-Glycol Solutions (Max 50% Glycol) |
| Opening Temperature | 3°C (Discharge Commences Automatically) |
| Closing Temperature | 4°C (Reseals Automatically as Warmer Water Reaches Valve) |
| Connections | 1" or 1-1/4" Male BSP x Female Swivel Union for Fast Alignment |
| Body Material | DZR Brass (Dezincification Resistant CW602N) |
| Max Operating Pressure | Max 10 bar (PN10) |
| Max System Temperature | 65°C to 90°C (Compatible with Heat Pump Heating & Legionella Cycles) |
BS EN Installation Protocol
- Step 1: Identify Lowest Outdoor Point — Install one valve on the outdoor flow and one on the outdoor return pipe at the lowest points.
- Step 2: Mount Vertically Downwards — Always position valve vertically with discharge port facing downwards to allow gravity drainage.
- Step 3: Thread Seal Male Connection — Apply PTFE tape or approved thread sealant to male thread and hand-tighten swivel nut onto pipe.
- Step 4: Align Clearance — Ensure discharge point has at least 150mm clearance above ground or drains into a soakaway/gully to prevent ice damming.
- Step 5: Insulate Around Valve — Insulate pipework thoroughly up to the valve, leaving the bottom discharge sensor head exposed to ambient air.
Frequently Asked Questions
How does an antifreeze valve work without electrical power?
It utilizes an autonomous thermal wax element that contracts at 3°C to open a drain port.
It utilizes an autonomous thermal wax element that contracts at 3°C to open a drain port. When water temperature rises back to 4°C, the wax expands and automatically seals the valve shut.
Do I need one or two antifreeze valves on a monobloc heat pump?
Two valves are required: one on the flow pipe and one on the return pipe outdoors.
Two valves are required: one on the outdoor flow line and one on the outdoor return line. This allows cross-circulation and complete gravity draining of the external circuit.
Why is the swivel union connection beneficial for installation?
The swivel union allows easy orientation of the discharge port vertically downwards.
The swivel union allows easy orientation of the discharge port vertically downwards without over-torquing or straining adjacent heat pump copper or flexible connections.
Does this replace the need for glycol in heat pump circuits?
Yes, many installers use antifreeze valves to run 100% water, improving heat transfer efficiency.
Yes, many installers prefer antifreeze valves over glycol because 100% water offers better heat capacity, lower pump electricity usage, and eliminates annual glycol testing.
How far above ground must the valve discharge port be installed?
Maintain at least 150mm clearance above ground or discharge into a free-draining gravel gulley.
Maintain at least 150mm clearance above ground or discharge into a free-draining gravel gulley to prevent accumulating ice from blocking the discharge opening.
What pipe thread sizes are available?
Available in 1" Male x Female Swivel and 1-1/4" Male x Female Swivel sizes.
Available in 1" Male x Female Swivel and 1-1/4" Male x Female Swivel sizes for standard commercial and domestic heat pump connections.
Order Trade Heat Pump Antifreeze Valves Online
Essential freeze protection for all monobloc air source heat pump installations. Fast UK dispatch.
