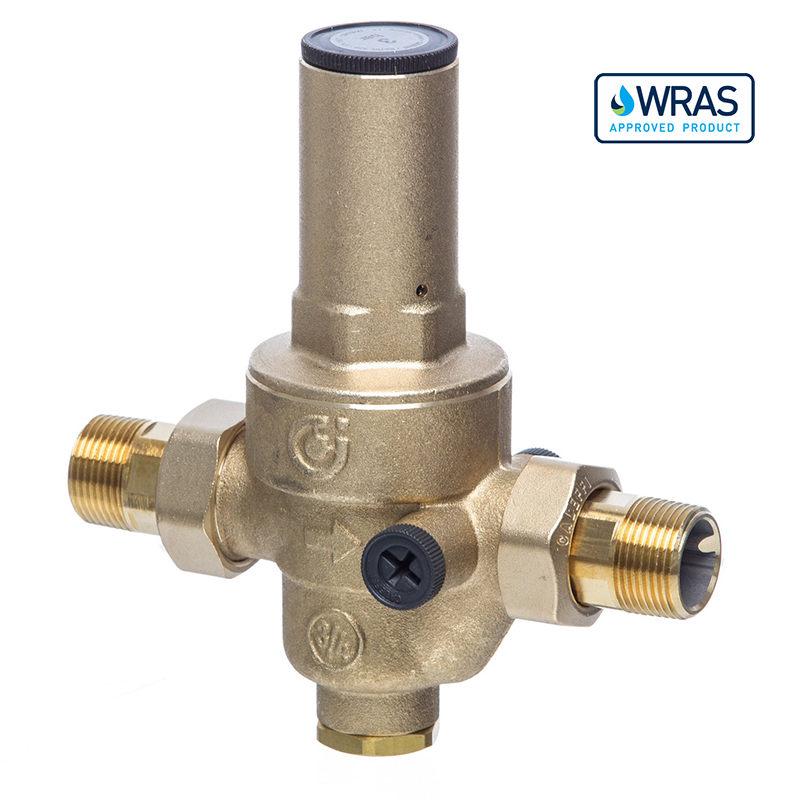

Prescal - series 536 pressure reducing valve 1/2 inch 536041
Special Price £99.99 (Inc.Vat)
Special Price £ 187.99 SAVE: 47%
Availability: In Stock
WRAS Approved
The 536 series is specially designed for hot and cold services in semi-commercial or public buildings to equalise either the hot or cold supplies or both and prevent excessive pressure at water outlets such as taps, basins, toilets, dishwashers and other appliances. The pressure can be adjusted using a 10mm Allen key/screw driver, depending upon size. The internal cartridge assembly can be easily removed for inspection, cleaning and maintenance operations. The compensated seat design means that the set downstream pressure remains independent of upstream pressure variations. An integral filter prevents debris from entering the cartridge, which may affect its performance.
Features and Specifications:
Designed for applications in semi-commercial or public buildings
Adjustable pressure range of 0.5 to 6 bar
Pressure adjusted using Allen key or screwdriver
High maximum inlet pressure of 25 bar
Cartridge assembly can be easily removed for inspection, cleaning and maintenance
Integral filter prevents debris entering the cartridge
1/2" male x male screwed iron connections

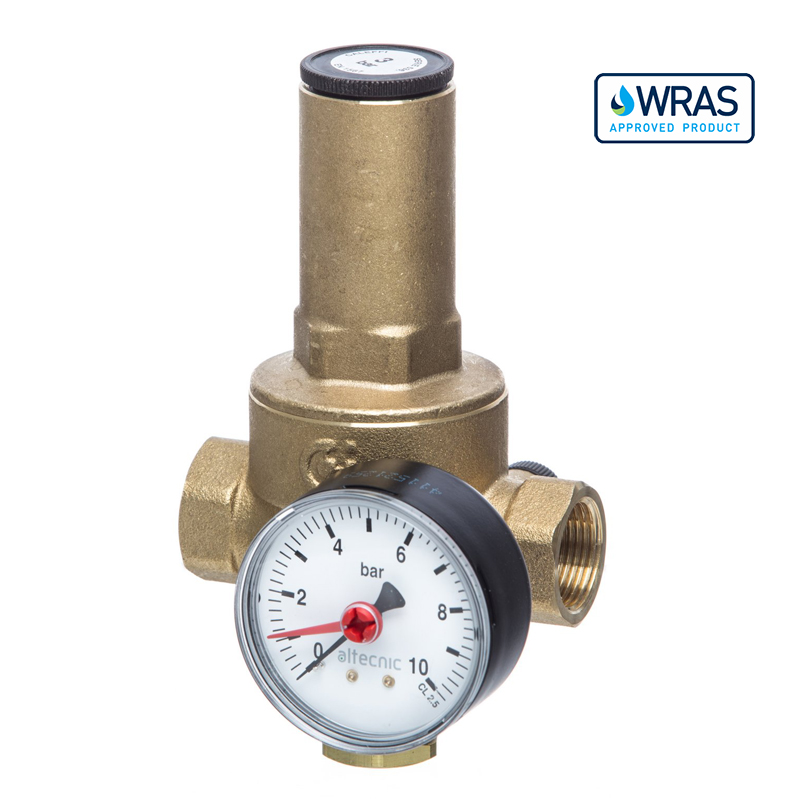

Includes 1/4" gauge port and pressure gauge
WRAS Approve
Max. inlet pressure: 25 bar
Outlet pressure setting range: 0.5 to 6 bar
Factory setting: 3 bar
Max. working pressure: 80°C
Pressure gauge range: 0 to 10 bar
Medium: portable water
Complies with: BS EN 1567
Acoustic group: I
Product Code:
536041
Weight:
1.25kg
Manufacturer
Altecnic
Model:
1/2"
Width:
140.00 mm
Height:
144.00 mm
MPN
536041
EAN
8016615014723
