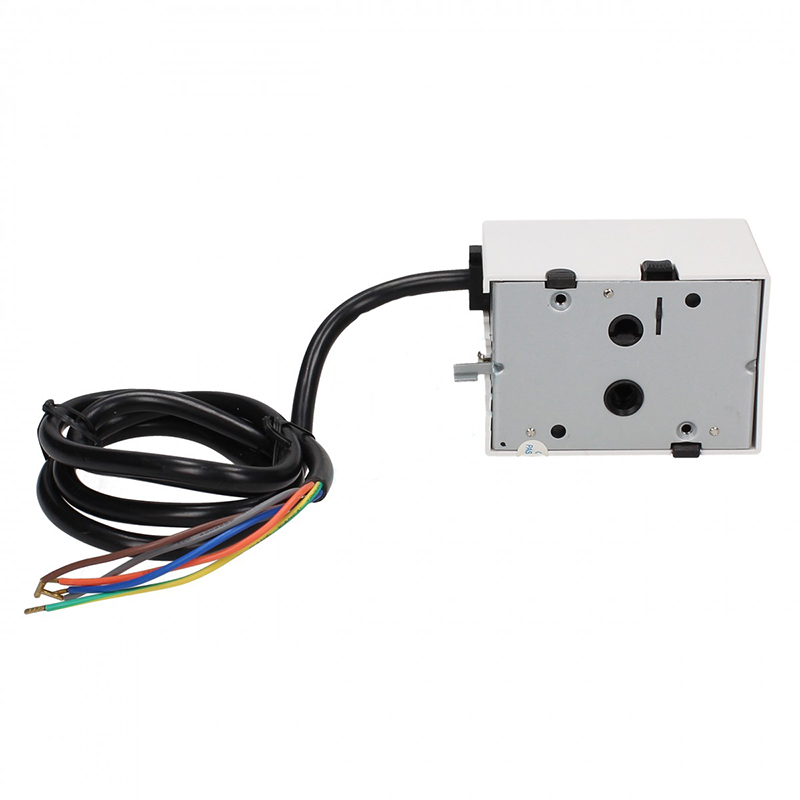

ESi Replacement Actuator Head For 2 Port Zone Valves - ESZVA222N
Special Price £31.24 (Inc.Vat)
Special Price £ 54.42 SAVE: 43%
Availability: In Stock
The ESi Controls replacement actuator head for 2 port zone valves is easy-fit, this simple clip on/off detachable actuator head has been designed to fit directly onto the valve body used by ESi, Honeywell, and similar type bodies, with the two supplied screws..
Specifications:
warranty - 3 years
Supply Voltage - 220-240V AC, 50/60Hz.
Power Consumption - 5W
Fluid Temperature Min-Max - +5°C to +88°C.
Operating Temperature – +5°C to +50°C.
Flow Direction - As per arrow on valve body.
Auxilary Switch Rating - 250V AC 4A
Response opening - 16 seconds.
Response closing - 7 seconds.
Max Static Pressure - 8 Bar
Max Close-Off Pressure - 1 Bar (2 Port).
Complies with - EN60730-1, EN60730-2.7, EMC Directive 2004/108/EC, LVD Directive 2006/95/EC.
Product Code:
ESZVA222N
Weight:
0.60kg
Manufacturer
ESI Controls
Model:
2 Port Actuator Head
MPN
ESZVA222N
